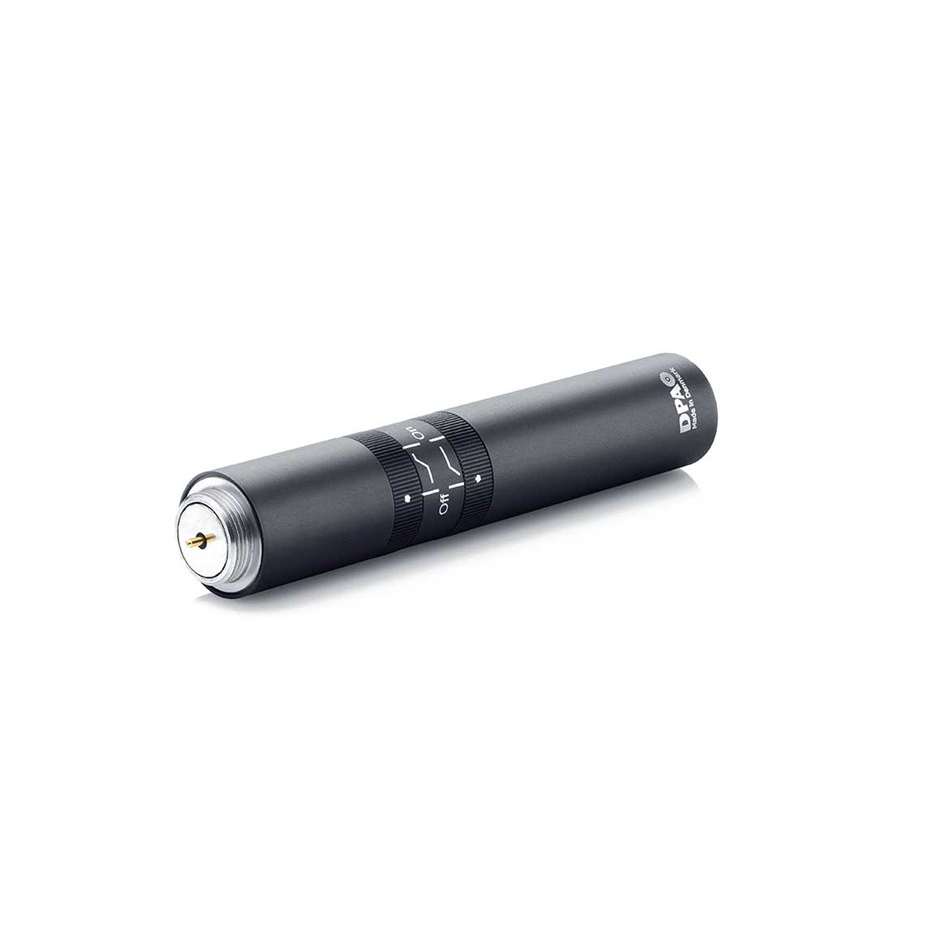

The DPA MMP-B Microphone Preamp with Low Cut and High Boost delivers refined signal control and pristine audio quality for professional recording environments. Featuring a fixed 50 Hz third-order low-cut filter and two switchable options, high boost and additional roll-off, it ensures optimal tonal shaping right at the source.
This transformerless, actively balanced preamp is compatible with all DPA modular pencil microphone capsules and provides reliable XLR-3M output for seamless integration.
DPA MMP-B features
- Preamp with fixed 50 Hz third-order low-cut filter
- Switchable high-boost and roll-off filters
- Transformerless design with active impedance balancing
- Compatible with all DPA pencil capsules
- Balanced XLR output
DPA MMP-B Specifications
| Output |
XLR-3M, balanced |
| Power |
48 V phantom |
| Filter 1 |
fixed 50 Hz low-cut (third-order) |
| Filter 2 |
switchable roll-off |
| Filter 3 |
switchable high boost |
| Compatible with |
4006, 4011, 4015, 2006, etc. |
