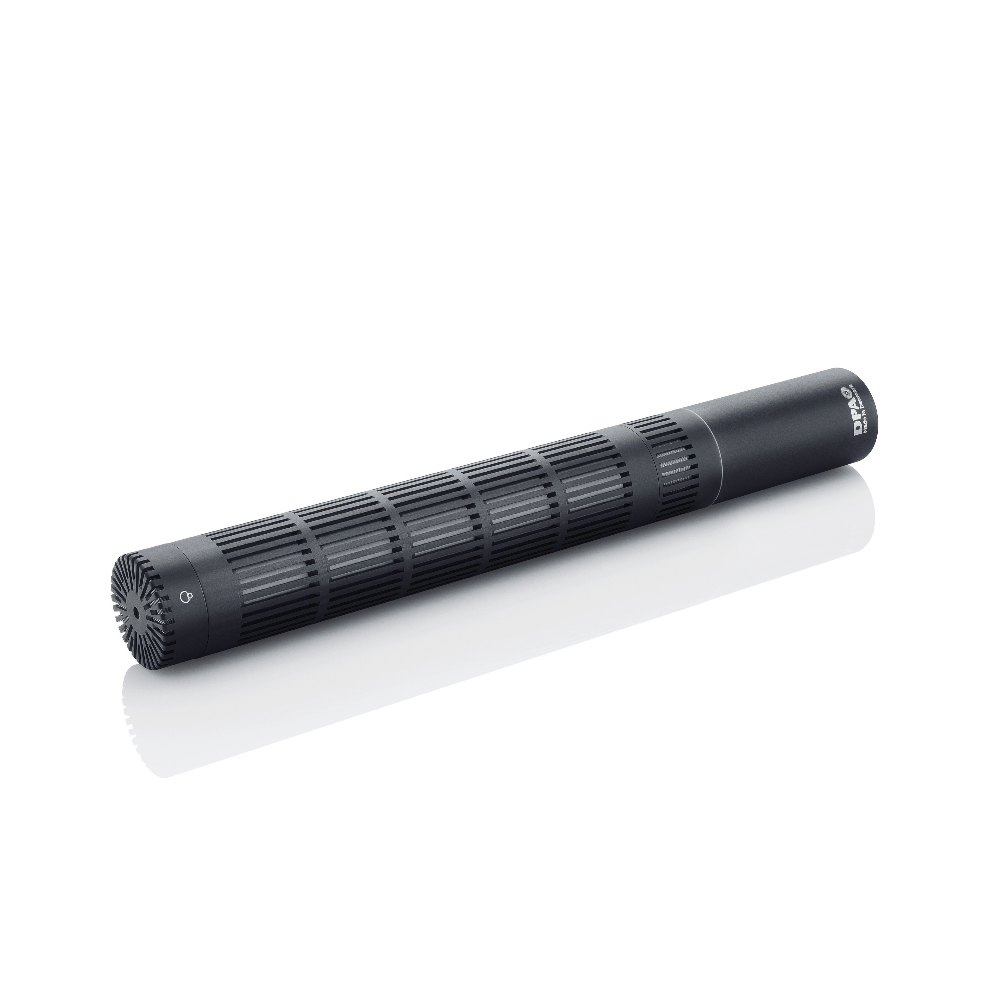

The DPA 4017C Shotgun Mic Capsule is immune to RF emission and the 19 mm (0.75 in) condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. It withstands use in very humid environments with ease. It delivers clear sound even when used in very hot or cold areas of the world such as the desert and the arctic.
Main Features:
- Small and lightweight
- Excellent RF immunity
- Highly immune to humidity
- Uniform off-axis response
- Highly directional pattern
- Sleek shotgun for distant miking
- Integrated active cable
Broad range of application:
Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.
Specifications:
| Directional pattern |

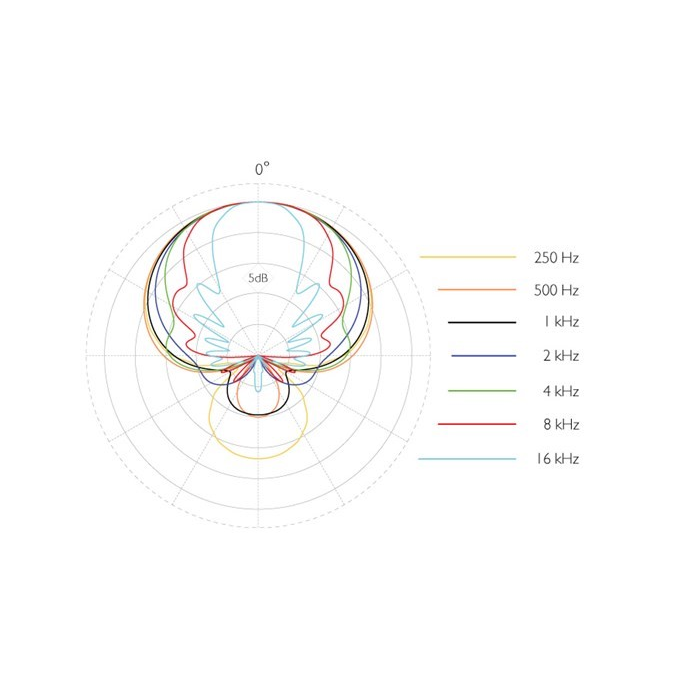

Supercardioid, lobe-shaped
|
|
Principle of operation
|
Pressure gradient, with interference tube
|
|
Cartridge type
|
|
|
Frequency response
|
|
|
Effective frequency range, ±2 dB, at 60 cm (23.6 in)
|
40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
|
|
Sensitivity, nominal, ±2 dB at 1 kHz
|
19 mV/Pa; -34.4 dB re. 1 V/Pa
|
|
Equivalent noise level, A-weighted
|
Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
|
|
Equivalent noise level, ITU-R BS.468-4
|
|
|
Distortion, THD < 1%
|
134 dB SPL RMS, 137 dB SPL peak
|
|
Dynamic range
|
|
|
Max. SPL, THD 10%
|
|
|
Rated output impedance
|
|
|
Minimum load impedance
|
|
|
Cable drive capability
|
|
|
Output balance principle
|
Impedance balancing with Active Drive
|
Impedance balancing with Active Drive
|
|
|
Power supply (for full performance)
|
|
|
|
|
|
|
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Maximum output voltage, RMS
|
|
|
|
+V at pin 2 for positive sound pressure
|
|
|
-40°C to 45°C (-40°F to 113°F)
|
|
|
|
