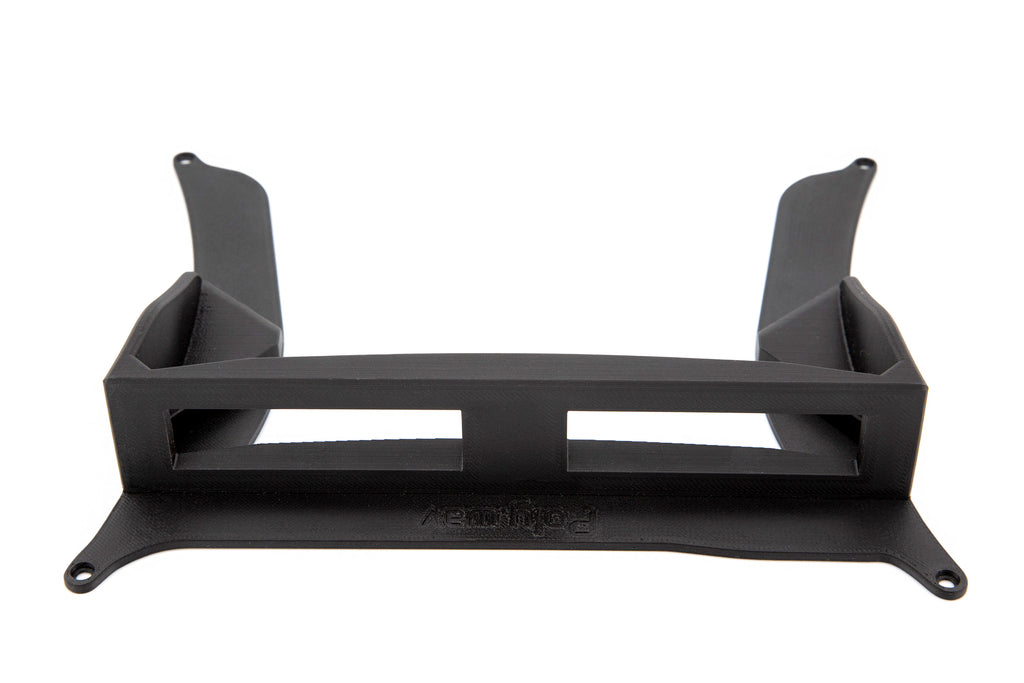

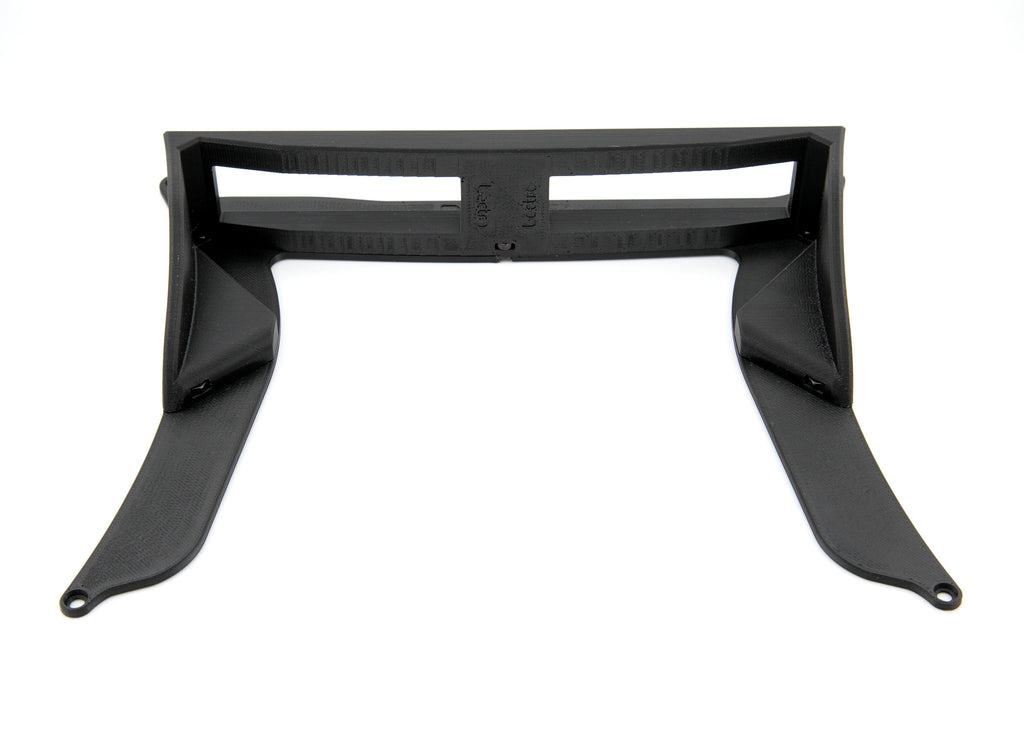

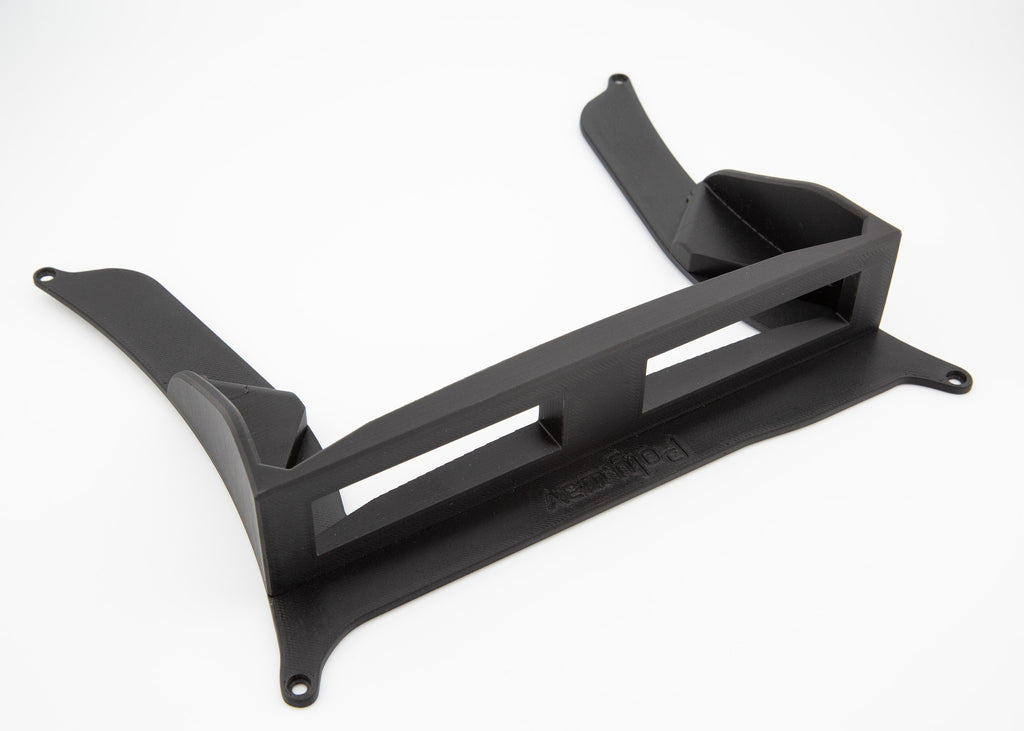

The Poly.wav RX2 Dashboard for the MixPre-10 II provides 2 slots for slot-in type wireless receivers to be mounted on the top side of your Sound Devices MixPre 10-II. This keeps your receivers and mixer firmly in place in your bag and reduces the chance of independent movement which can lead to cable/connector wear and damage, or worse, loss of connection during recordings.
Receiver Slot Types:

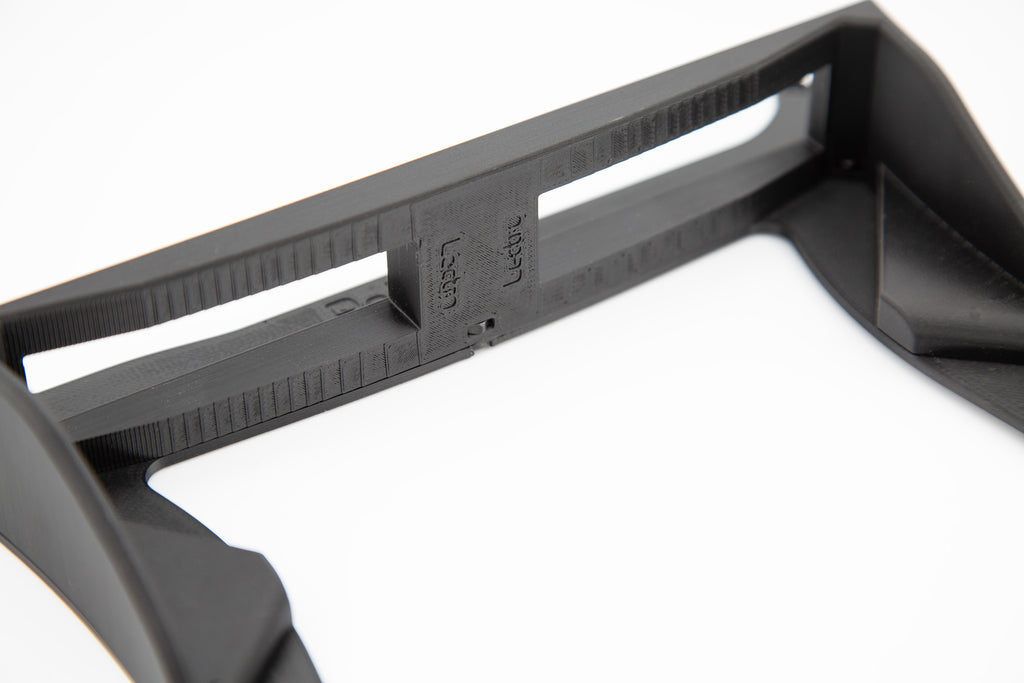

There are 3 different sizes of the RX Dashboard's receiver slots, so you can customise the fit for your required setup. These are:

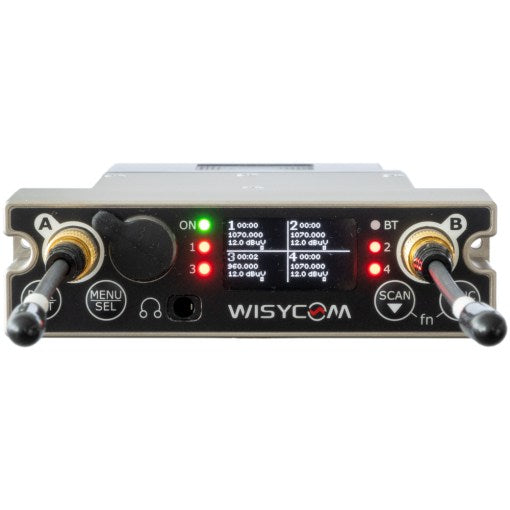

Type 1: Wisycom MCR54 / Lectrosonics DSR4, SSR
Type 2: Sound Devices A20-RX / A10-RX
Type 3: Shure ADX5D
Please select your desired type for slot 1 (left) and slot 2 (right).
Mounting your receivers:

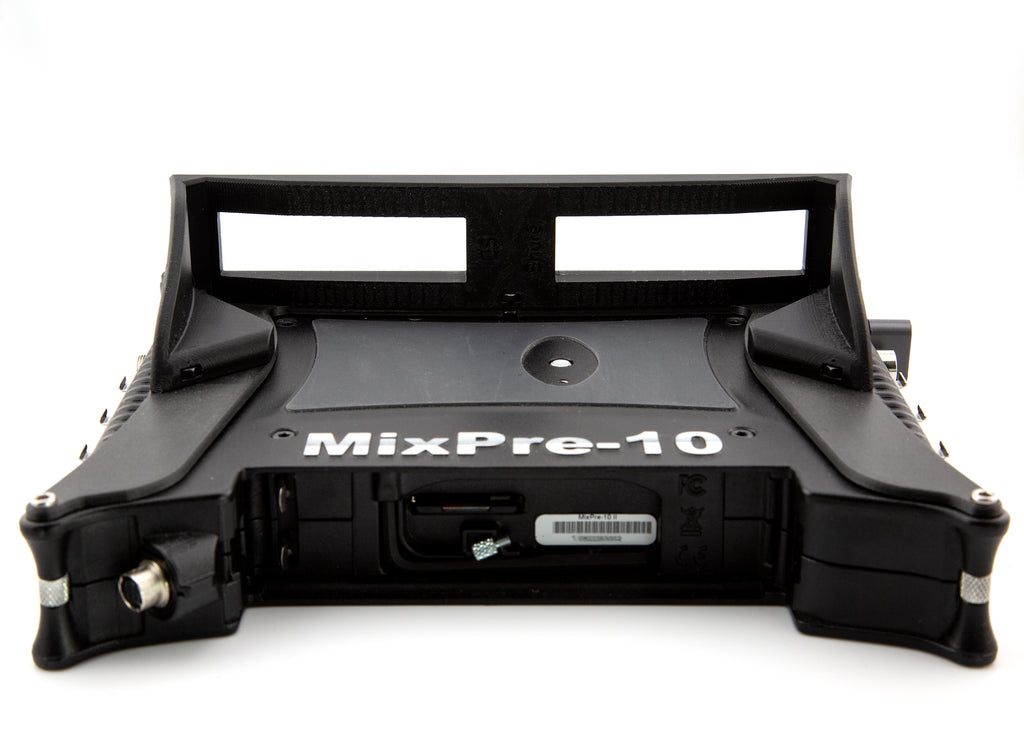

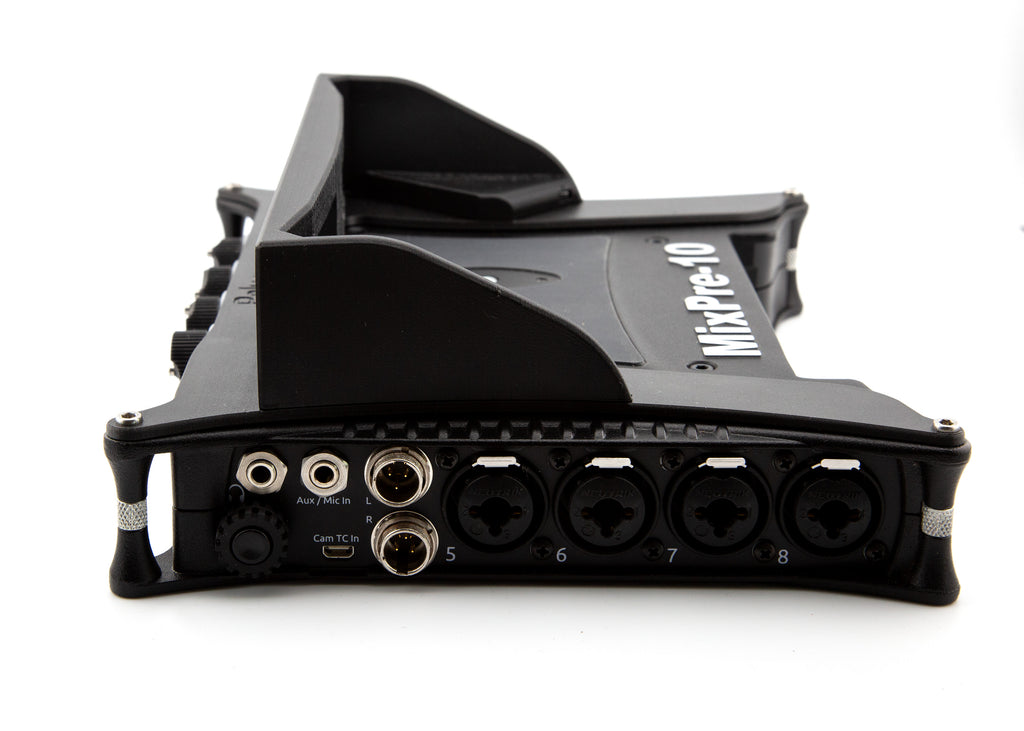

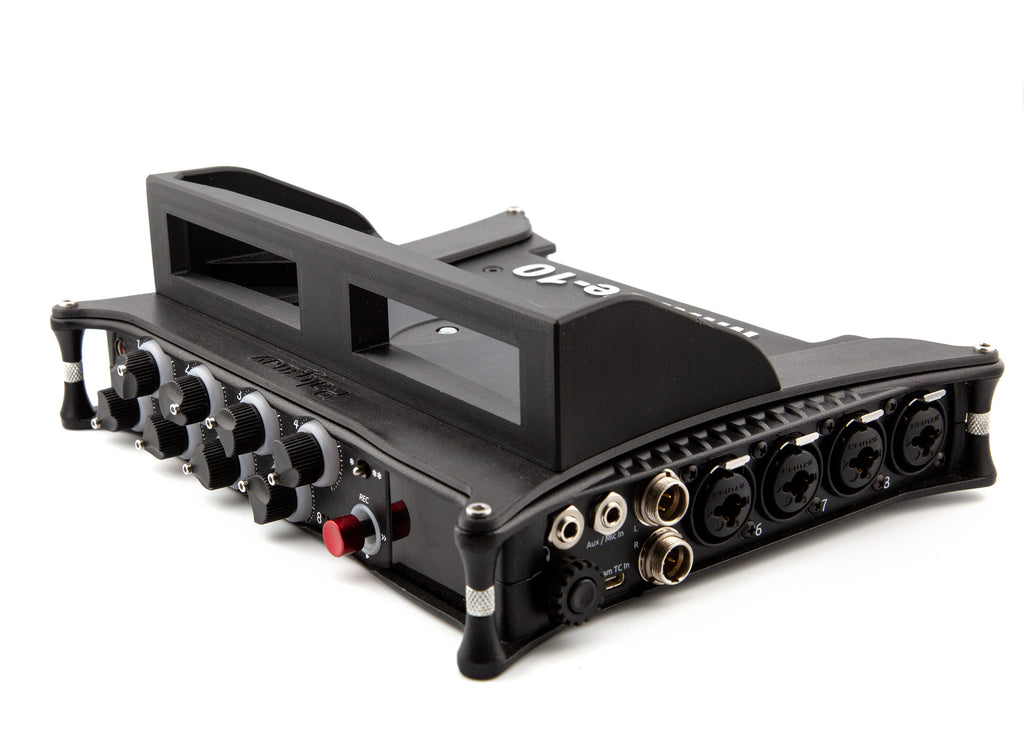

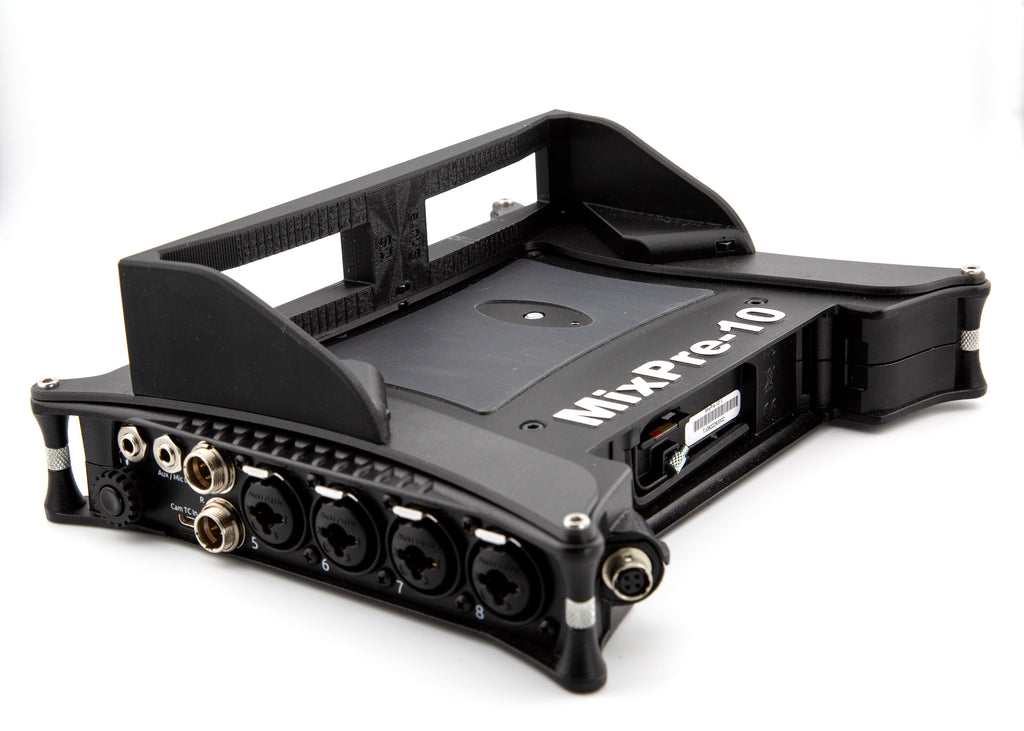

Mounting the RX2-MP10 Dashboard onto the recorder is achieved using the MixPre's included Hex bolts.

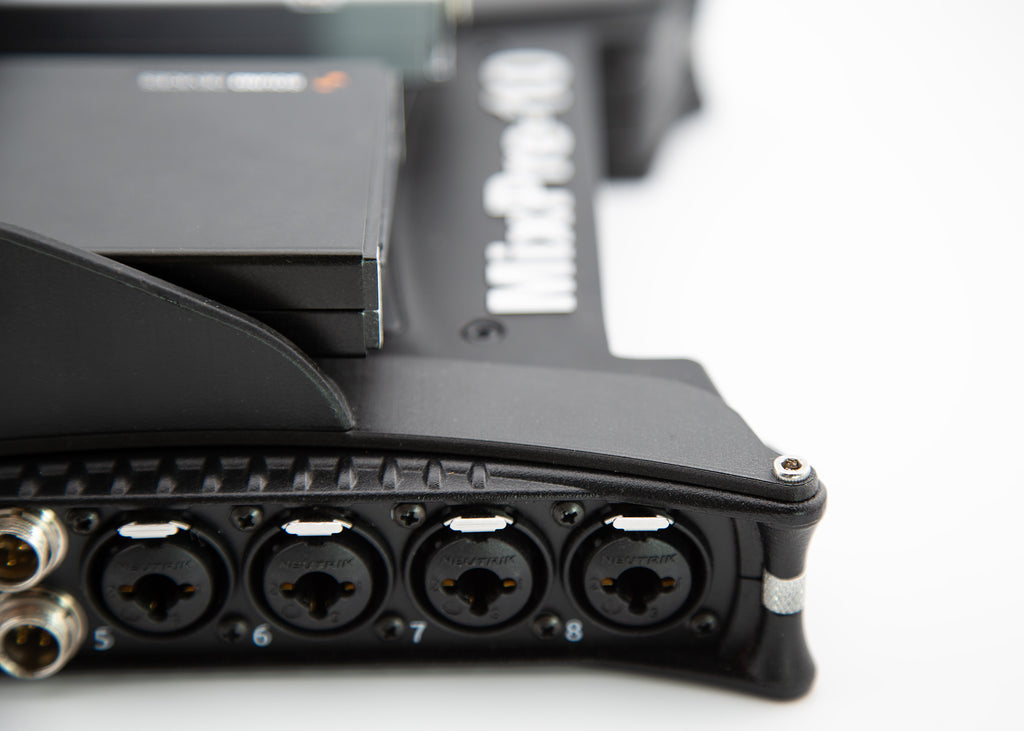

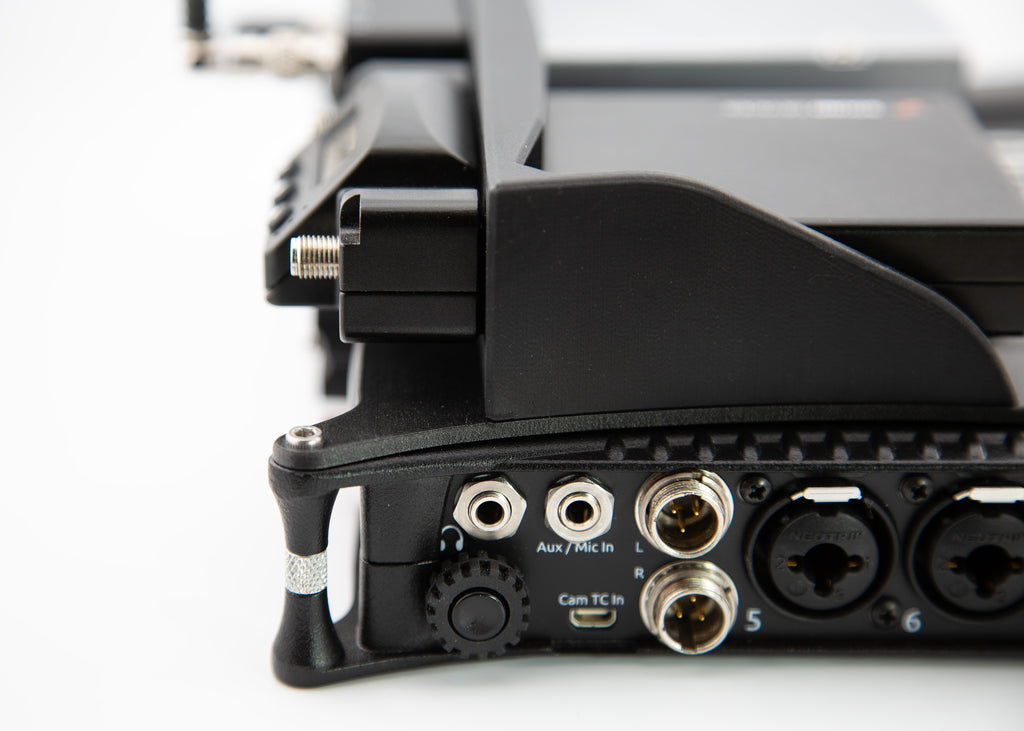

Your wireless receivers slot in snugly and stay in place due to the tight, custom fit and vertical orientation in your bag. As an additional safety measure, the receivers can be held in place with the included heavy duty rubber bands, preventing any kind of movement, while remaining non-invasive.
If you are going to be free climing El Capitan or jumping out of aeroplanes and would prefer custom screw-mounts for your receivers in the front plate, please let us know prior to purchase and we can make the necessary arrangements.
Custom Cables:
Check out our immense collection of custom audio cables, and contact us for help if you can't find what you are looking for.

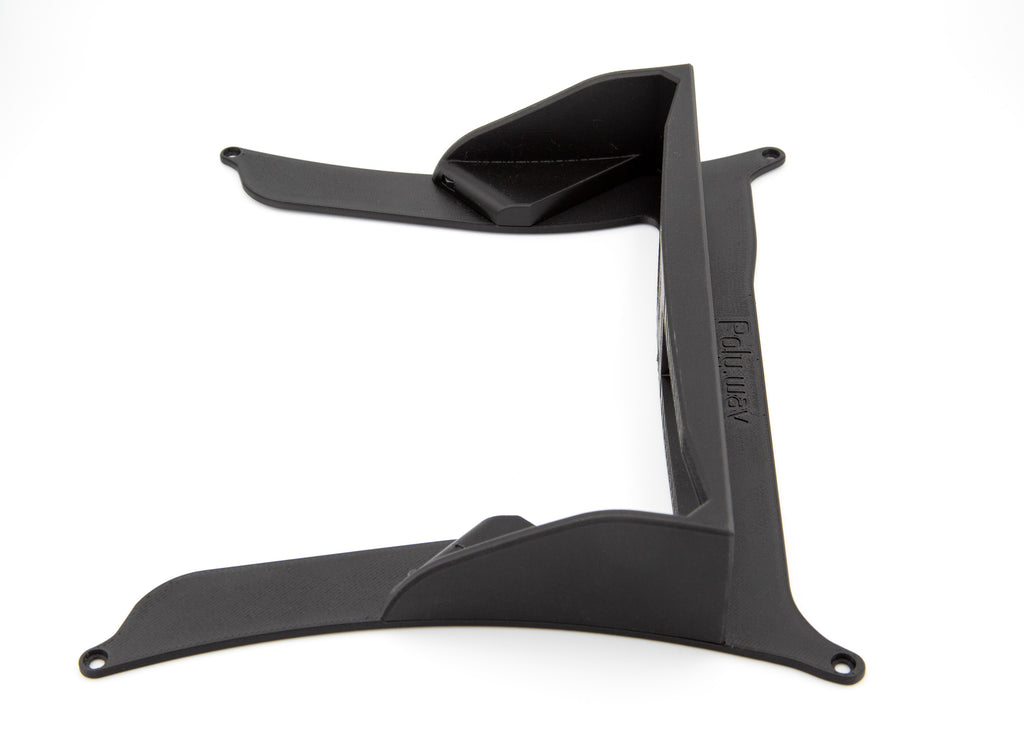

Poly.wav RX2 Dashboard for MixPre-10 II Specifications:
| Material: |
PETG - very strong and durable material that can last a long time without losing its mechanical properties.
|
| Dimensions: |
Height: 36mm
Width: 203mm
Depth: 170mm
|
| Weight: |
70g
|
| Colour: |
Standard colour is black.
|

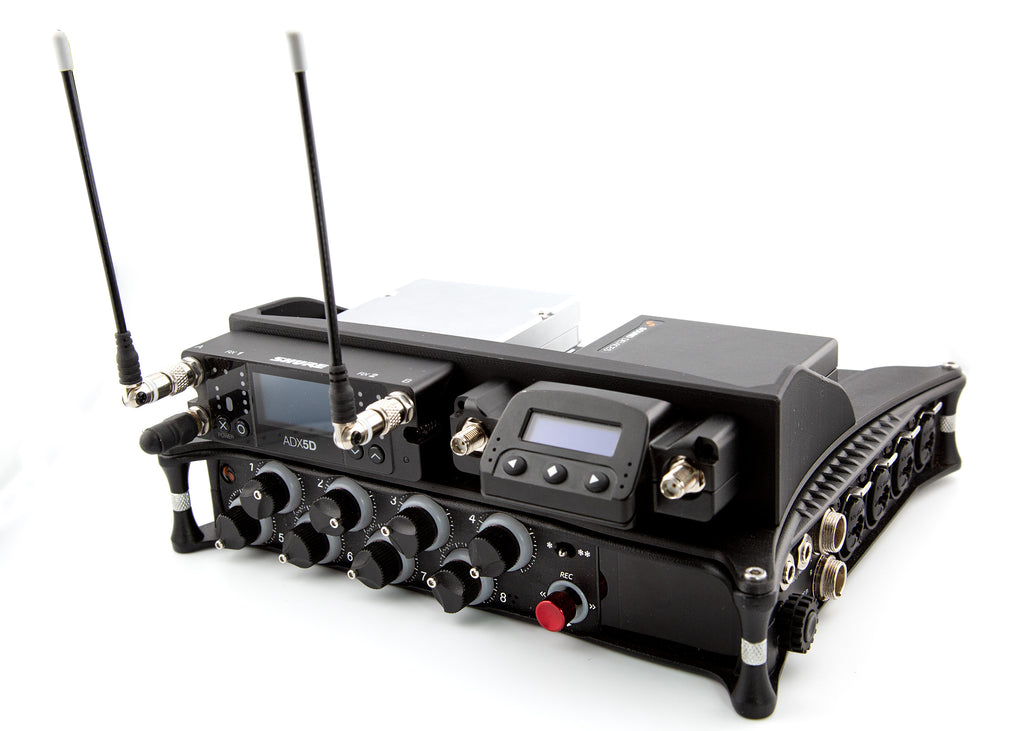

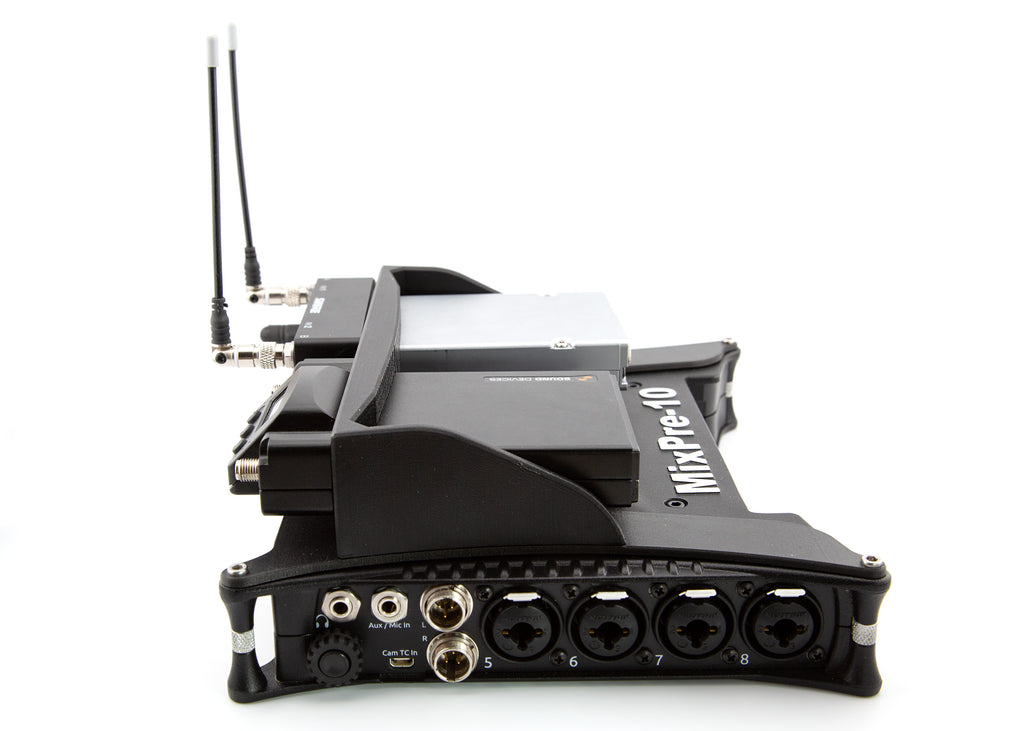

NB: Wireless receivers and MixPre-10 II pictured are for display purposes only. This product is the dashboard only and does not include them.
