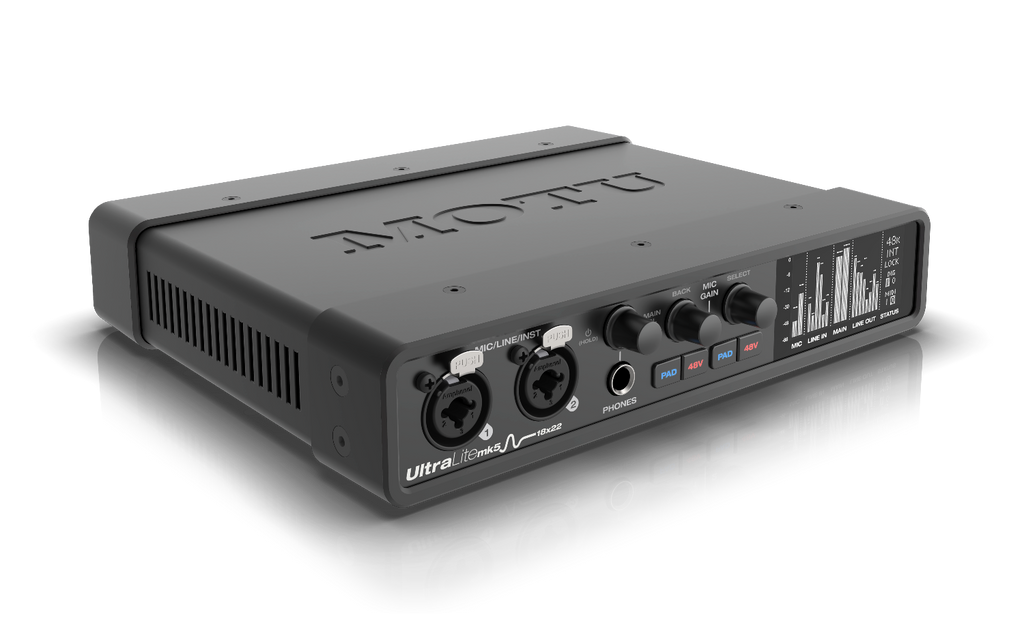

The MOTU UltraLite-mk5 Audio Interface is a compact powerhouse, delivering exceptional sound quality with ESS Sabre32™ DAC technology, offering a dynamic range of 125 dB and ultra-low total harmonic distortion of -114 dB. Designed for both studio and live settings, it provides 40 simultaneous audio channels, including 18 inputs and 22 outputs, with versatile connectivity options like 10 balanced TRS outputs, 6 balanced TRS inputs, and ADAT optical I/O. Its ultra-low latency performance, with round-trip latency as low as 2.4 ms at 96 kHz, ensures smooth, high-quality audio production.
Built for portability, the UltraLite-mk5 features flexible I/O, including mic, guitar, and line inputs, making it perfect for mobile recording or live sound mixing. USB class compliance allows seamless plug-and-play compatibility with macOS, Windows, and iOS devices. Additionally, the unit includes a loopback feature for live streaming and podcasting, ensuring effortless integration with software for live audio streaming.
The UltraLite-mk5 is equipped with the powerful CueMix™ 5 console app, offering comprehensive control over your mix, effects, and routing. Whether you’re recording at home or mixing live on stage, this interface delivers rock-solid performance, easy-to-use features, and high-end sound quality for both novice and professional users. It’s the ideal solution for musicians and engineers seeking flexibility and pristine audio in a portable, rack-mountable format.
MOTU UltraLite-mk5 features
- ESS Sabre32™ DAC Technology
- Ultra-Low Latency Performance
- 40 Simultaneous Audio Channels
- USB Class Compliance
- Loopback Function
- Flexible I/O Options
- CueMix™ 5 Console App
- Rack-Mountable Design
MOTU UltraLite-mk5 Specifications
| Sample rates |
44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Mic/line/guitar inputs |
2 x XLR/TRS "combo" jacks
1 MΩ impedance on the line/instr inputs |
| Analog inputs |
6 x 1/4" TRS line in (balanced) |
| Analog outputs |
10 x 1/4" TRS line out (balanced, DC coupled) |
| Digital I/O |
1 bank (8 ch) of ADAT optical at 1x sample rates
1 bank (4 ch) of SMUX optical at 2x sample rates
Switchable to stereo TOSLink (optical S/PDIF)
1 x stereo S/PDIF on RCA (up to 96 kHz) |
| Computer I/O |
1 x USB-C 2.0 audio class compliant
Compatible with USB Type A (with adapter or C-to-A cable) |
| Total audio I/O |
18 in / 22 out (40 total) at 1x sample rates
14 in / 18 out (32 total) at 2x sample rates
8 in / 12 out (20 total) at 4x sample rates |
| MIDI I/O |
1 x MIDI IN
1 x MIDI OUT
16 MIDI channels to/from computer host |
| Headphone |
1 x 1/4" TRS stereo phone |
| Phantom power |
2 x individual +48V |

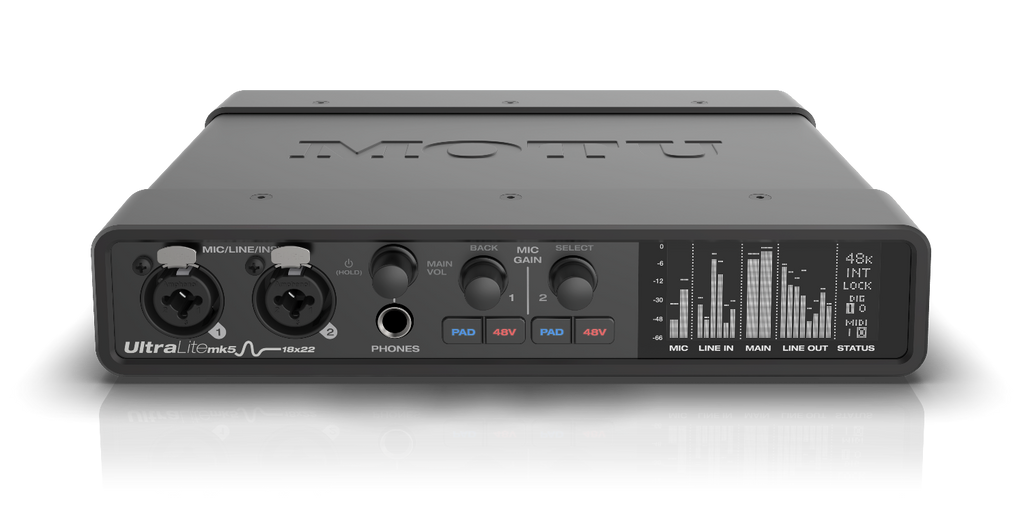

| Front panel |
2 x XLR/TRS combo inputs
1 x 1/4" TRS headphone output
1 x potentiometer • phone/monitor vol
2 x potentiometer • mic/instr input gain
4 x switches • (2) 48V and (2) pad
1x high-resolution white OLED display for metering/status |
| Power |
Multi-blade international 15V DC power adapter
1.0A max • tip pos or neg
Supports 100-240V power sources (US/Japan, EU, UK, Australia) |
| Dimensions and weight |
(width x depth x height, enclosure only)
8.6 x 6.9 x 1.75 inches
22 x 17.5 x 4.5 cm
2.875 lbs / 1.31 kg |
