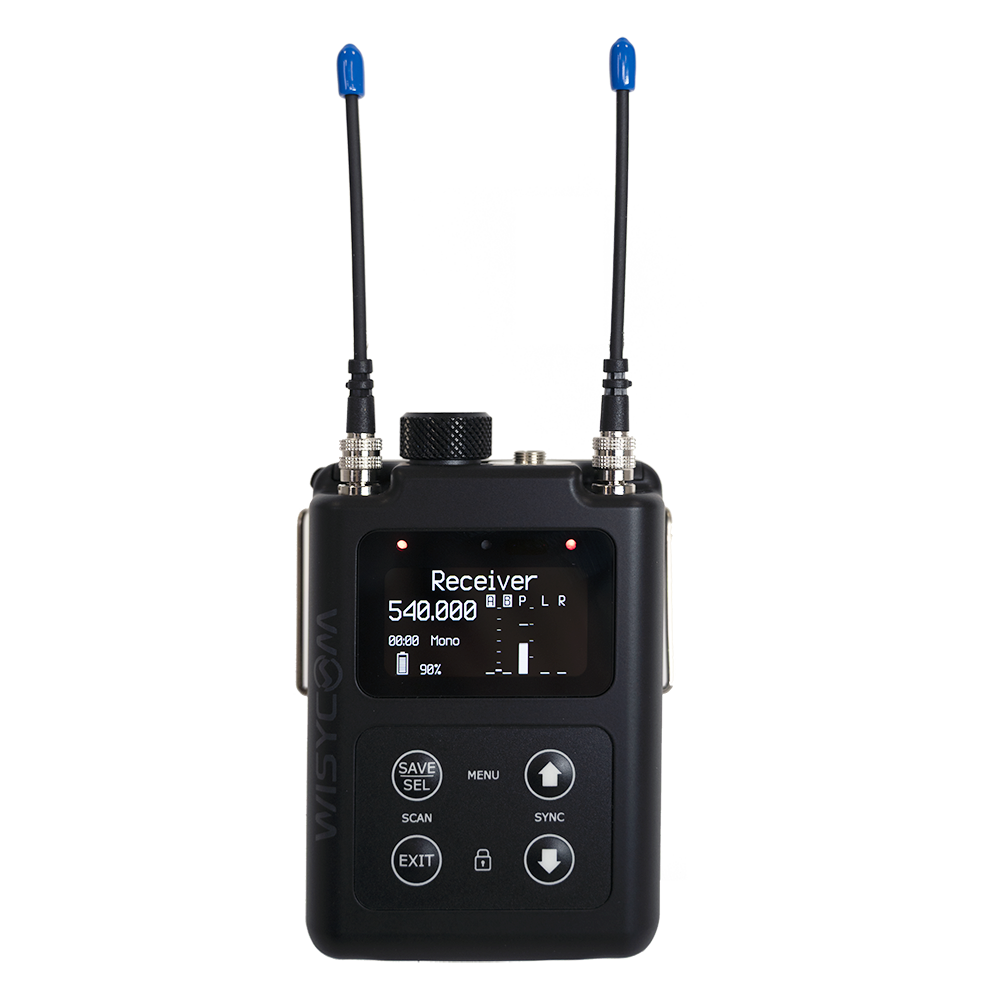

The new Wisycom MPR60 IEM/IFB Receiver is designed for Broadcast and Location Sound, live events, high-end theater, and large-scale Houses of Worship, the MPR60 is a powerful IEM and IFB solution for uncompromised performance in demanding situations.
This receiver features a real TRUE DIVERSITY configuration offering true freedom with unmatched frequency agility. Just one unit to cover the whole world.
Audio processing can be stereo, mono IFB wideband or mono IFB narrowband, selectable by the user.

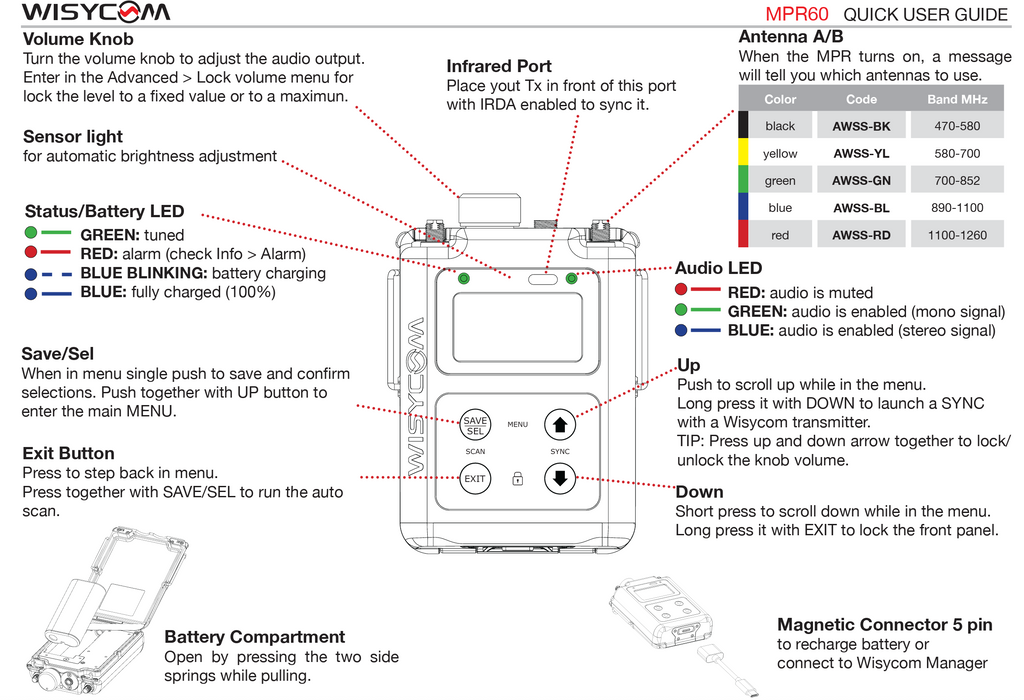

The MPR60 is very easy to operate and super versatile, thanks to its OLED display, navigation button controls and automatic scan function.
Wisycom MPR60 Features:
- Wideband Frequency Agility: 470-800, 823-832, 940-960, 1240-1260 MHz bands for maximum flexibility
- Superior RF Efficiency & Robustness: superior with 400 kHz equidistance in IEM mode
- Automatic Audio Power Limitation: Intelligently adjusts the output control by measuring the impedance of the in-ear headphones
- Prepared for Remote Control: Future-proof your workflow
- Exceptional Audio Quality & Channel Separation (>60 dB)
- True Diversity Reception
- Easy to Read Display – even in sunlight
- Three Working Modes: IEM Stereo Multiplex, IFB wideband, IFB narrow band
- Noise Squelch Protection (IFB mode): looks at the quality of the signal
- Tone Squelch Detection (IFB mode): for full compatibility with Wisycom transmitters
- Easy to Service: Easily replaceable RF connector via special tool
MPR60 Technical Specifications
| Parameter |
Specification |
| Frequency ranges |
470–800 + 823–832 + 940–960 + 1240–1260 MHz |
| Switchable channels |
2400, managed in 40 groups of 60 frequencies |
| Switching-window |
379 MHz |
| Frequencies |
Quartz PLL synthesizer, 5 kHz step |
| Frequency error |
< ±2.5 ppm |
| Diversity technique |
True diversity |
| Peak deviation |
±48 kHz (IEM Stereo); ±56 kHz (IFB WB); ±35 kHz (IFB NB) |
| Antenna inputs |
SSMA connectors |
| Antenna input impedance |
50 Ω (SWR < 1:2) |
| Sensitivity |
2 μV (6 dBμV) |
| Spurious emissions |
< 2 nW |
| Noise reduction |
ENS – Wisycom optimized |
| AF bandwidth |
30 Hz–15 kHz (IEM); 45 Hz–20 kHz (IFB WB); 45 Hz–17 kHz (IFB NB) |
| Frequency response |
±0.5 dB (30 Hz–15 kHz) |
| Distortion |
0.3% typical |
| S/N ratio |
90 dB typical |
| Stereo separation |
> 60 dB |
| Headphone output |
3.5 mm TRS locking, 2 × 125 mW @ 16 Ω |
| Managing interface |
Bluetooth, LoRa, magnetic 5-pin connector |
| LED |
2 RGB LEDs |
| Display |
Graphic 180×350 px |
| Powering |
2 × AA batteries |
| Battery life |
3.5 h alkaline / 6.5 h lithium |
| Temperature range |
-10 to +55 °C |
| Dimensions |
93.3 × 61 × 22.4 mm |
| Weight |
Approx. 140 g (without battery) |
