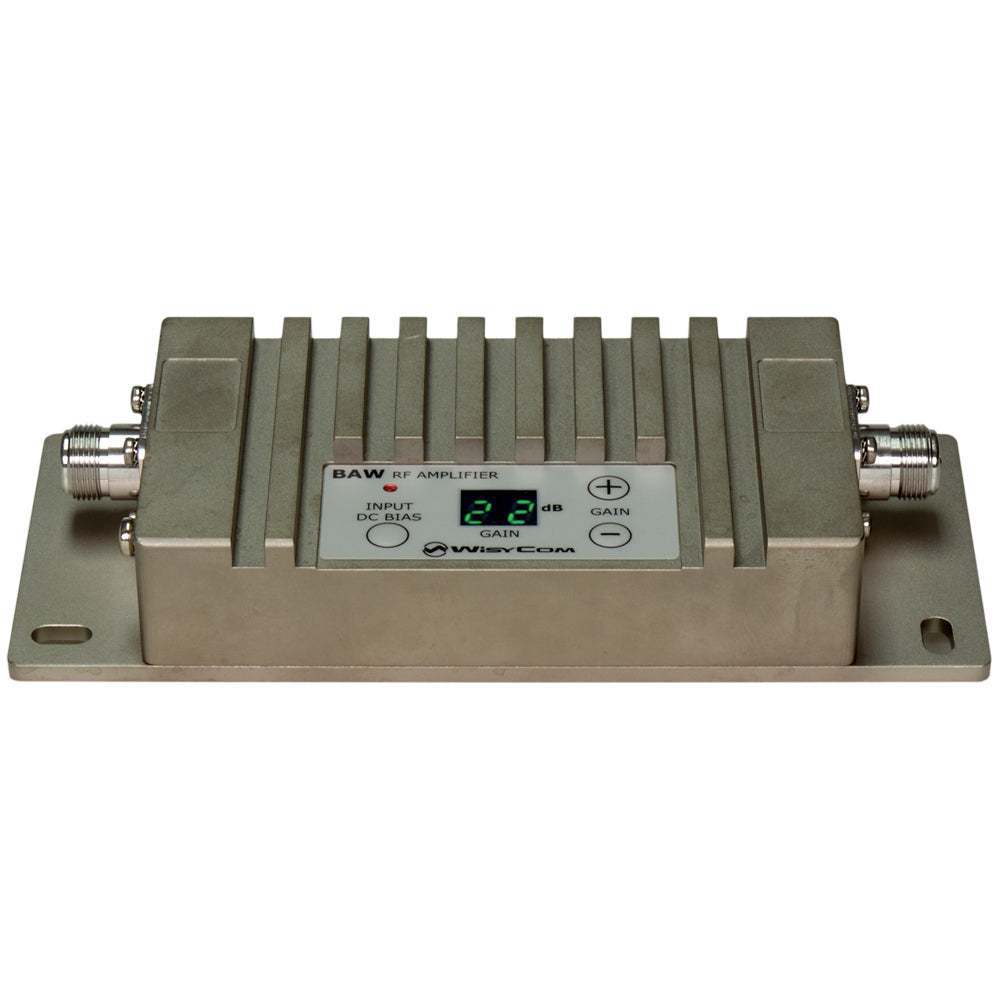

The Wisycom BAW is wideband antenna booster with N-connectors especially designed to allow to use long cables with broadband wireless receiver system working in 470-870 MHz (TV ch 21/70) thanks to a very high OIP3 of 47 dBm. This very high power booster that thanks to its linearity and to 22 dB amplification (settable in 1 dB step) allows to challenge easily even the most critical RF installation.
Choose from four frequency filter versions:
- BAW-N: BAW band N (470-700MHz)
Wisycom BAW Features
- Broadband operations 470-870 MHz
- Very high linearity (OIP3 > 47 dBm)
- Up to 22 dB gain settable in one dB step
- Powered thru cable
- Power feedthrough selectable for cascade operations
- RGB Led’s for easy status indications
