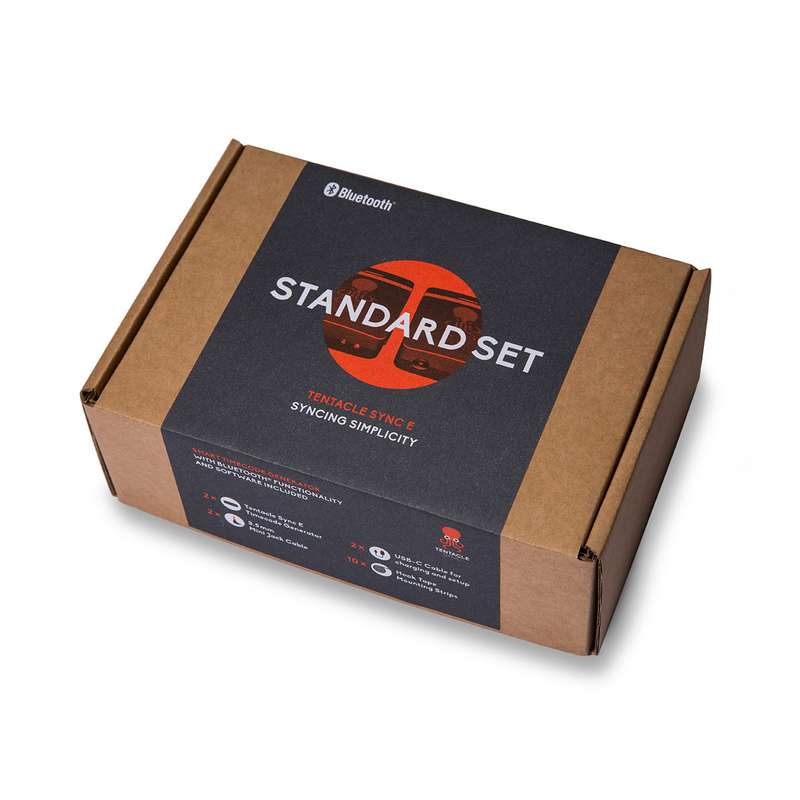

The Standard Set, with two SYNC E mkII devices, is a complete hardware/software solution offering timecode
synchronization over Bluetooth. The Set also includes the renowned Tentacle Sync Studio Software for macOS, for fast
and easy synchronization of your audio and video footage. The Tentacle SYNC E combined with our TRACK E timecode
audio recorder is the perfect workflow solution for any video shooting from YouTube and Wedding applications to
Multicam setups as well as post production syncing tasks.
Features
- Syncing over Bluetooth 5 (Low Energy) for monitoring and setup via phone or tablet
- Super small and lightweight
- Frame rate and TC output level adjustable via Tentacle Setup App (iOS/ Android/ macOS/ Windows)
- Two Tentacle Sync Studio Software Licenses included
- Tentacle Clamp locks a right-angle mini jack connector
- Accurate built-in reference microphone
- Generates All SMPTE timecode rates or jam-sync to any external timecode source
- High precision TCXO: accuracy with less than 1 frame drift in 24 hours (-30°C to +85°C)
- Designed and manufactured in Köln, Germany
Specification
-
LTC Timecode: According to SMPTE-12M Standard
-
Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
-
Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
-
Timecode I/O: Mini Jack Socket
-
Audio: Built-In Reference Mic
-
Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5
hrs)
-
Mounting: Integrated Hook Surface on the Back for Easy Mounting
-
Weight: 30 g / 1 oz
-
Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches
What's in the Box?
- 2x Tentacle SYNC E - Timecode Generator with Bluetooth™ Functionality
- 2x Mini-Jack-Cable (90° angled) for Syncing Cameras with TRS (Sony a7S III, BMPCC4K/6K, GH5s …)
- 2x USB-C Cable for Charging and Setup (Win/Mac)
- 2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
- 10x Velcro Loop Pads for Mounting the Tentacle to any Device
- 4x Coloured Rubber Bands
- 1x Quickstart Guide
- 1x Software Activation Details and Manual included
