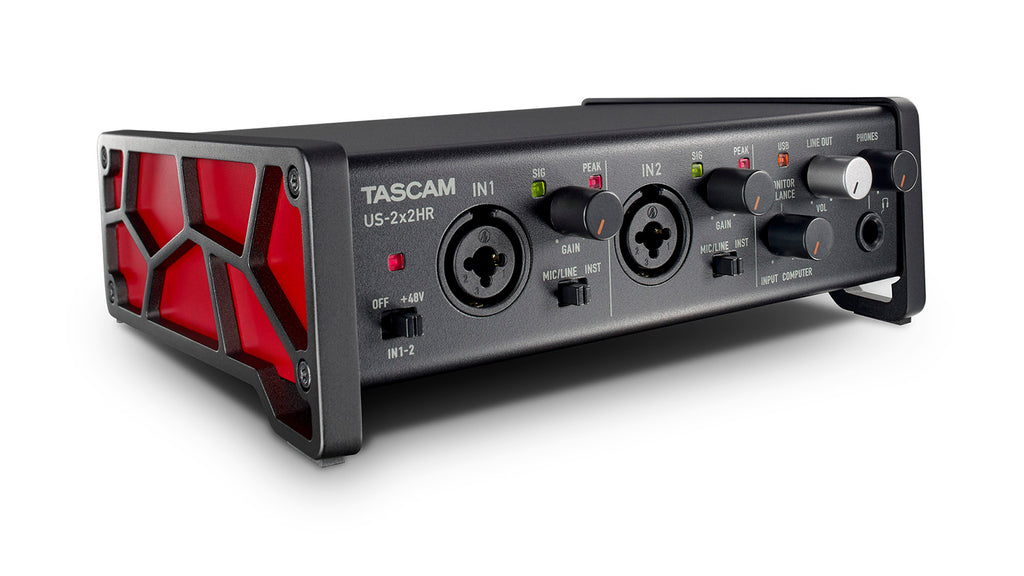

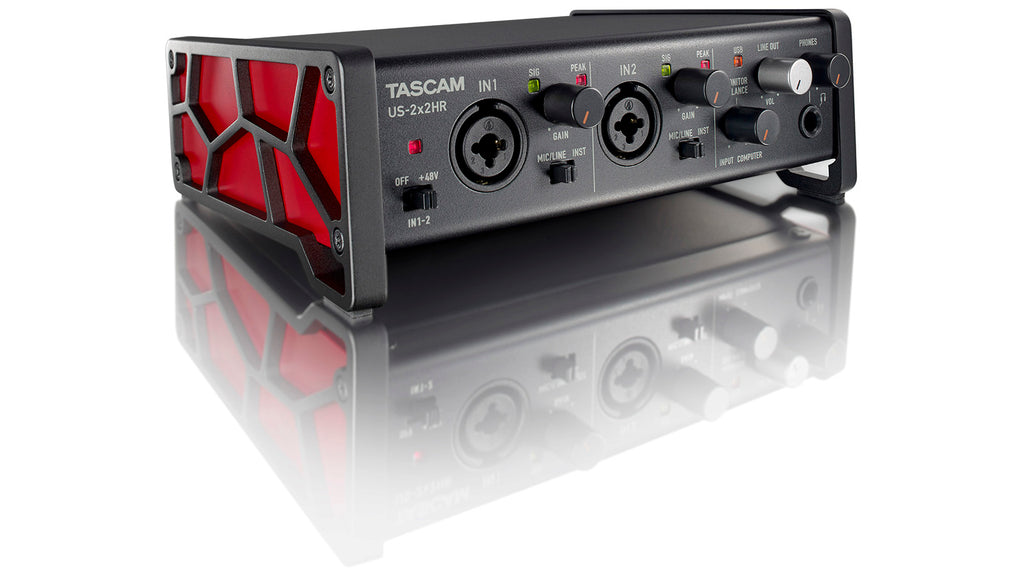

The Tascam US-2x2HR is a high-resolution 2-in/2-out USB audio/MIDI interface designed for musicians, podcasters, and streamers. It features two combo mic/line inputs with guitar support, MIDI I/O, loopback functionality, OBS compatibility, and pristine 192 kHz audio quality.
Tascam US-2x2HR Features
- 2-in/2-out USB audio interface
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- Supports up to 24-bit/192 kHz audio formats

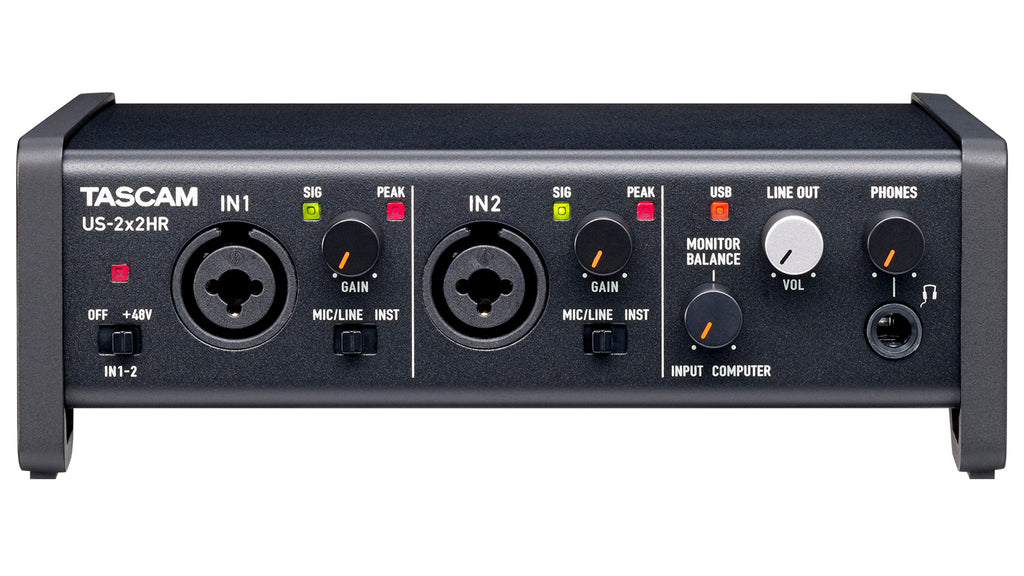

- 2 Combo (XLR) combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
- 2 Combo (TRS) line inputs with guitar input support

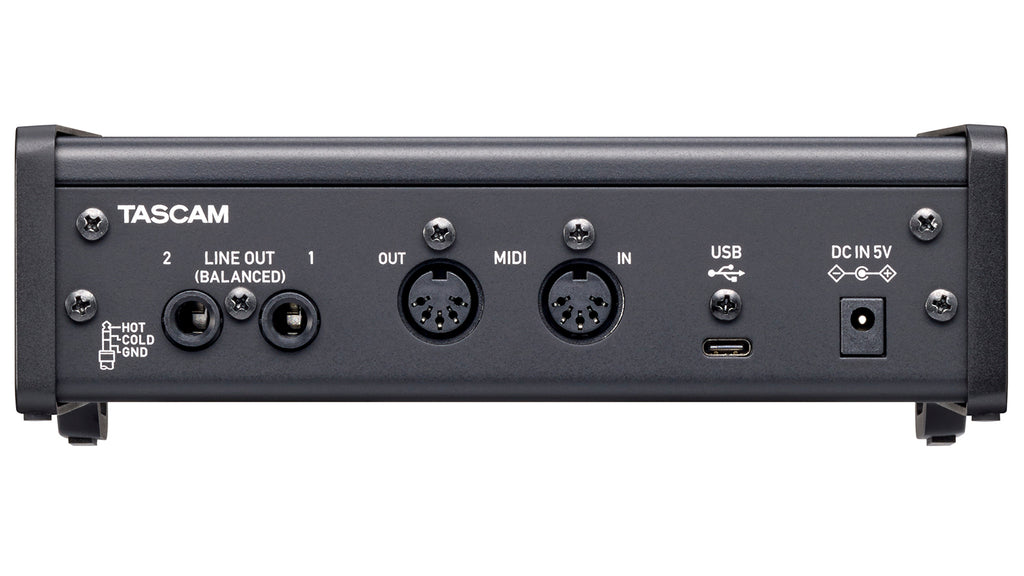

- TRS line output 1-2
- Headphone output
- Equipped with MIDI IN/OUT terminals
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software
- Steinberg Cubase LE, Cubasis LE 3
- IK Multimedia Sample Tank 4 SE
- Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
What's in the box?
- US-2x2HR
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
-
Owner's manual（warranty card included)
Specifications
| Sampling frequency |
44.1k/48k/88.2k/96k/176.4k/192k Hz |
| Quantization bit rate |
24bit |
| Analog audio inputs |
|
| MIC IN |
IN 1 / IN 2 |
| Connector |
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED |
| Input impedance |
2.2k ohms |
Maximum input level
(GAIN:MIN) |
+9dBu (2.183Vrms) |
| Gain |
56dB |
| INST IN |
IN 1 / IN 2 |
| Connector |
6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at MIC/LINE INST switch) |
| Input impedance |
1M ohms or more |
Maximum input level
(GAIN:MIN) |
+10dBV(3.162Vrms) |
| Gain |
56dB |
| LINE IN |
IN 1 / IN 2 |
| Connector |
6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
(When set to "MIC/LINE" at MIC/LINE INST switch) |
| Input impedance |
10k ohms |
Maximum input level
(GAIN:MIN) |
+20dBu(7.746Vrms) |
| Gain |
56dB |
| Analog audio outputs |
|
| LINE OUT |
1-2 |
| Connector |
6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED |
| Output impedance |
210 ohms |
| Nominal output level |
+4dBu (1.228Vrms) |
| Maximum output level |
+20dBu (7.746Vrms) |
| PHONES |
|
| Connector |
6.3mm(1/4") stereo phone jack |
| Maximum output level |
18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded) |
| Output impedance |
66ohms |
| Working impedance |
16ohms to 250ohms |
| MIDI IN /OUT |
|
| Connector |
Din 5-pin |
| Format |
Standard MIDI format |
| USB |
|
| Connector |
USB Type-C |
| Format |
USB2.0 HIGH SPEED (480Mbps) |
| Power |
|
| When connected PC |
USB bus powered
AC Adapter (TASCAM PS-P520E, sold separately) |
| When connected iOS/iPadOS |
AC Adapter (TASCAM PS-P520E, sold separately) |
| Power consumption |
1.75W |
| Dimensions |
186(W) × 65(H) × 160(D)mm (including protrusions) |
| Weight |
2.43lb (1.1kg) |
| Operating temperature |
5 to 35°C |
| Accessories |
USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty) |
