The Tascam SERIES 8p Dyna is a great choice for both studio and stage. Housed in a rugged 1U rack-mount casing, its dual S/MUX optical ports make it a perfect expansion unit for a TASCAM SERIES 102i or SERIES 208i or other S/MUX-equipped audio interfaces including ADAT, or use it as a stand-alone front end.
Tascam SERIES 8p Dyna Features
- Versatile, great-sounding front end for recording and live sound
- 8 TASCAM HDIA (High Definition Instrumentation Architecture) microphone preamplifiers
- Single-knob analog compressor with true bypass individually assignable to each input channel

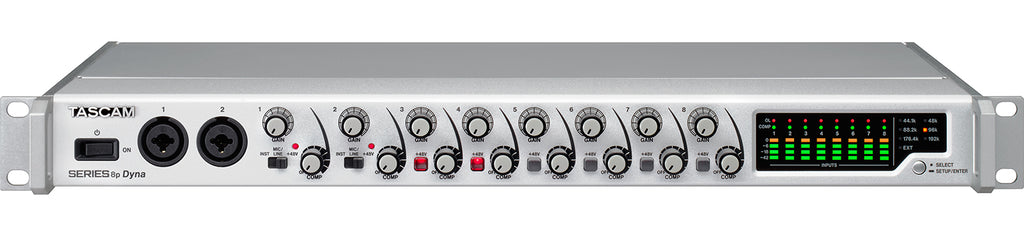

- 2 front panel instrument (Hi-Z)/microphone combo inputs

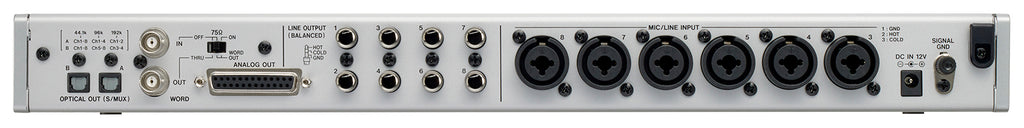

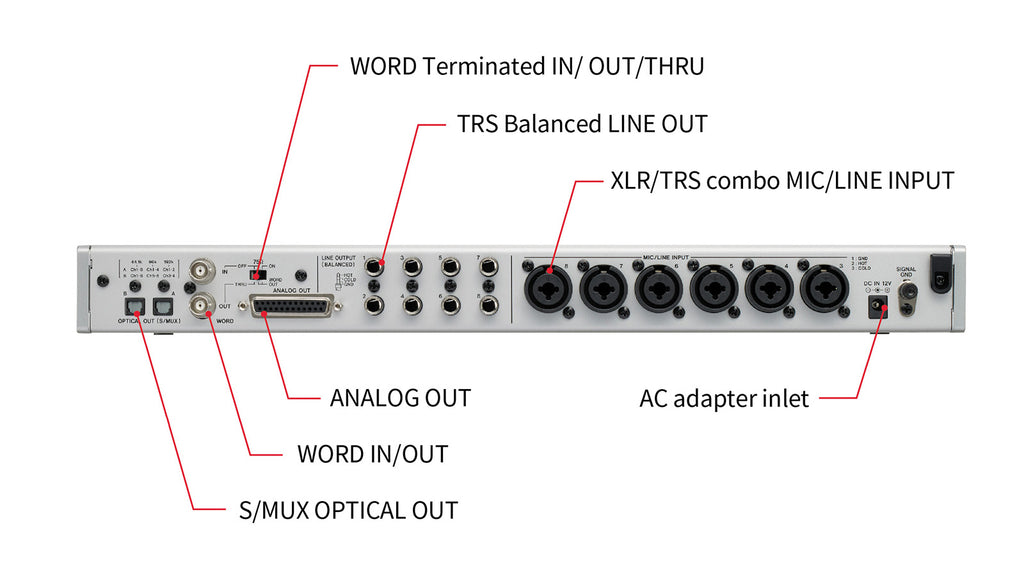

- 6 rear-panel balanced mic/line inputs
- Individually switched +48V phantom power per channel
- Dual S/MUX optical outputs: 8 channels at up to 96 kHz; 4 channels at 176.4 or 192 kHz (ADAT compatible)
- 8 line-level 1/4-inch balanced TRS analog channel outputs
- 8 line-level balanced channel outputs on a 25-pin D-Sub connector
- Word clock in and out on BNC connectors, with In/Out/Thru switch
- Front-panel analog overload indicators, compression indicators, and digital peak and level meter bars
- Rugged metal 1U rack-mount enclosure
What's in the box?
- Main unit
- AC adapter (PS-P1230) (with 3 alternate plugs)
- Rackmount screw kit
- Owner’s Manual (including warranty)
- TASCAM ID registration guide
Specifications
| Sampling Frequency |
44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz |
| Quantization Bit Rate |
24-bit |
| Analog Audio Inputs |
|
|
MIC IN (Balanced) |
1-2 (when the input switch is set to MIC/LINE), 3 thru 8 |
| Connector |
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Input Impedance |
2.3kΩ |
| Rated input level |
|
| GAIN: MAX |
-58dBu（0.001Vrms) |
| GAIN: MIN |
-6dBu（0.388Vrms) |
| Maximum Input Level |
+10dBu (2.45Vrms) |
| Gain Range |
52dB |
|
INSTRUMENT IN (Unbalanced) |
1-2 (when the input switch is set to INST) |
| Connector |
1/4" (6.3mm) TS jack equivalent (Tip: HOT, Sleeve: GND) |
| Input Impedance |
1MΩ or more |
| Rated input level |
|
| GAIN: MAX |
-58dBV (0.0012 Vrms) |
| GAIN: MIN |
-6dBV (0.501Vrms) |
| Maximum Input Level |
+10dBV (3.162Vrms) |
| Gain Range |
52dB |
|
LINE IN (Balanced) |
1-2 (when the input switch set to MIC/LINE), 3 thru 8 |
| Connector |
1/4" (6.3mm) TRS jack equivalent (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input Impedance |
10kΩ |
| Rated input level |
|
| GAIN: MAX |
-48dBu (0.003 Vrms) |
| GAIN: MIN |
+4dBu (1.228Vrms) |
| Maximum Input Level |
+24dBu (12.282Vrms) |
| Gain Range |
52dB |
| Analog Outputs |
|
|
ANALOG OUT (Balanced) |
|
| Connector |
D-Sub 25pin, inch-screw No.4-40 UNC |
| Output Impedance |
200Ω or less |
| Nominal Output Level |
+4dBu (1.228Vrms) |
| Maximum Output Level |
+20dBu (7.75Vrms) |
| Load Impedance |
2kΩ or more |
|
LINE OUT (Balanced) |
LINE OUT 1 thru 8 |
| Connector |
1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Output Impedance |
200Ω or less |
| Nominal Output Level |
+4dBu (1.228Vrms) |
| Maximum Output Level |
+20dBu (7.75Vrms) |
| Digital Audio Outputs |
|
|
OPTICAL OUT (S/MUX) |
|
| Connector |
OPTICAL (JEITA RC-5720C) |
| Signal Format |
Multi-channel Optical Format
(Supports S/MUX2: 88.2k/96k Hz, S/MUX4: 176.4k/192k Hz) |
| Control Input/Output |
|
| WORD IN |
|
| Connector |
BNC |
| Input Voltage |
2.0Vpp to 5.0Vpp |
| Input Impedance |
75Ω +/-10% with Terminal ON/OFF Switch |
| Frequency Deviation |
+/-100ppm |
| WORD OUT |
|
| Connector |
BNC |
| Output Voltage |
2.0Vpp (into 75Ω) |
| Output Impedance |
75Ω +/-10% with OUT/THRU switch |
| Sampling Frequency |
44.1k / 48k / 88.2k / 96k / 176.4k /192k Hz |
| Power |
DC 12V (dedicated AC adapter PS-P1230) |
| Power Consumption |
16 W |
| Dimensions |
482(W) × 44.8(H) × 228.8(D) mm |
| Weight |
2.6kg / 5.7lb |
| Operating Temperature Range |
0 to 40°C |
| Accessories |
User's manual(with warranty), AC adapter (PS-P1230) |
