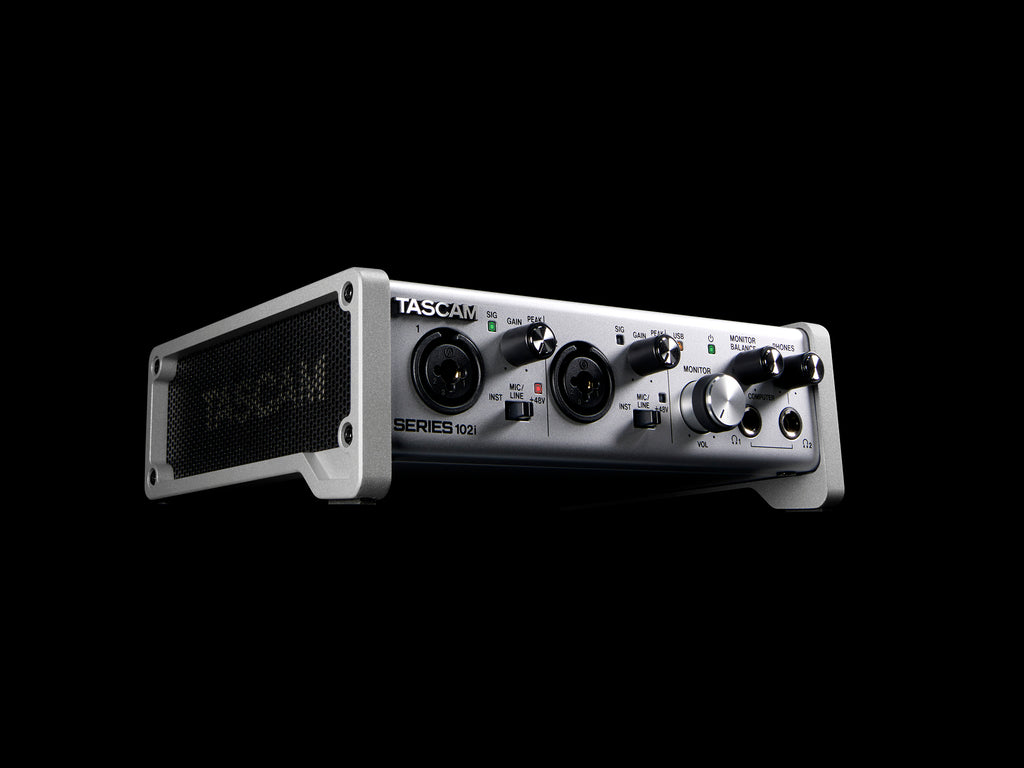

The Tascam Series 102i is a 10-in/2-out USB audio/MIDI interface designed for studio, home, and live recording. It features two XLR/TRS combo mic/line/instrument inputs with Tascam’s Ultra HDDA mic preamps, delivering transparent, ultra-low-noise audio at up to 24-bit/192 kHz resolution. An optical S/MUX expansion port allows up to 8 additional input channels, giving you 10 total inputs. The interface includes two ¼-inch analog outputs and dual headphone outputs for versatile monitoring. Built-in DSP effects—reverb, compressor, 4-band EQ, and phase invert—are managed through free Tascam Control software, which also provides flexible routing and mixer control. The angled tabletop design and large monitor knob offer easy access and fast adjustments. A Monitor Balance control enables zero-latency monitoring, and +48V phantom power is available on each input. With its expandable inputs, powerful dual headphone amps, and efficient internal processing, the Series 102i delivers a reliable and flexible solution for growing audio production needs.
Tascam Series 102i Features

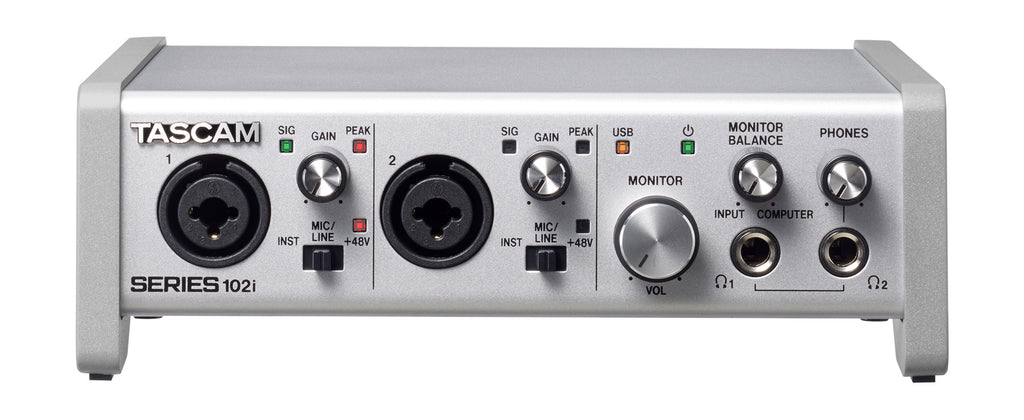

- Two XLR/TRS combo mic/line/instrument inputs
- Two transparent, natural-sounding, ultra-low noise TASCAM Ultra HDDA mic preamplifiers
- One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)
- 2 ¼-inch analog outputs and dual headphone outputs for versatile monitoring
- Built-in effects: reverb, compressor, 4-band EQ
- Flexible DSP input/output mixer controlled via free TASCAM Control software
- Software control of faders, routing, effects, and phase invert
- Up to 24-bit/192 kHz sample resolution
- Includes Steinberg DAW software and IK Multimedia world-class guitar effects/modeling and mastering software
- Compatible with Windows / Mac computers and iOS devices (supports UAC2.0)
- Automatic update function available for software/driver/firmware updates
What's in the box?
- Series 102i
- AC adapter (PS-P1220E) (with 3 alternate plugs)
- USB cable
- Set of DAW software installation guides
- Set of DAW plug-in software installation guides
- Owner's Manual (this document) including warranty
Specifications
| Sampling Frequency |
44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz |
| Quantization Bit Rate |
16 / 24-bit |
| Analog Audio Inputs |
|
|
MIC IN (Balanced) |
1-2 (when the input switch is set to MIC/LINE) |
| Connector |
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Input Impedance |
1.5kΩ |
| Nominal Input Level |
|
| GAIN: MAX |
-64dBu (0.0005Vrms) |
| GAIN: MIN |
-6dBu (0.388Vrms) |
| Maximum Input Level |
+10dBu (2.45Vrms) |
| Gain Range |
58dB |
|
INSTRUMENT IN (Unbalanced) |
1-2 (when the input switch is set to INST) |
| Connector |
1/4" (6.3mm) TS jack (Tip: HOT, Sleeve: GND) |
| Input Impedance |
1MΩ or more |
| Nominal Input Level |
|
| GAIN: MAX |
-64dBV (0.0006Vrms) |
| GAIN: MIN |
-6dBV (0.501Vrms) |
| Maximum Input Level |
+10dBV (3.162Vrms) |
| Gain Range |
58dB |
|
LINE IN (Balanced) |
1-2 (when the input switch is set to MIC/LINE) |
| Connector |
1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input Impedance |
10kΩ |
| Nominal Input Level |
|
| GAIN: MAX |
-54dBu (0.0015Vrms) |
| GAIN: MIN |
+4dBu (1.228Vrms) |
| Maximum Input Level |
+24dBu (12.282Vrms) |
| Gain Range |
58dB |
| Digital Audio Inputs |
|
| OPTICAL IN (S/MUX) |
|
| Connector |
OPTICAL (JEITA RC-5720C) |
| Signal Format |
Multi-channel Optical Format
(Supports S/MUX at 88.2k/96k/176.4k/192kHz) |

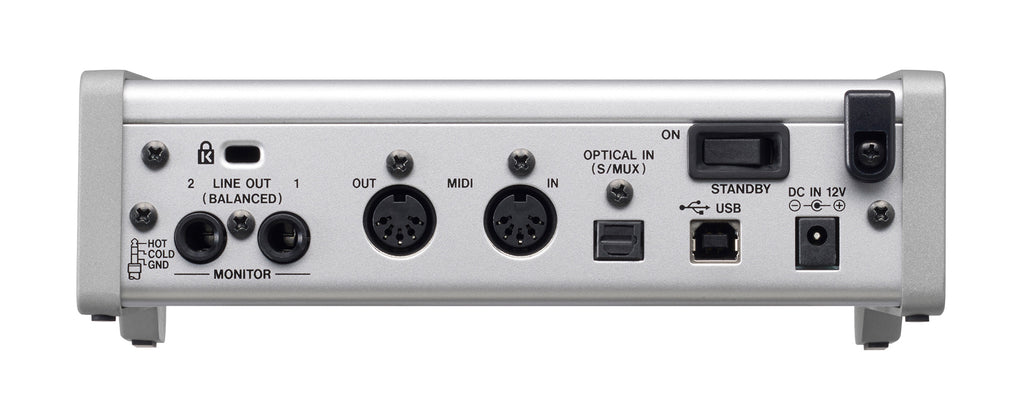

| Analog Audio Outputs |
|
|
MONITOR OUT (Balanced) |
LINE OUT 1-2 |
| Connector |
1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Output Impedance |
230Ω |
| Nominal Output Level |
+4dBu (1.228Vrms) |
| Maximum Output Level |
+20dBu (7.75Vrms) |
| HEADPHONE OUT |
PHONES 1-2 |
| Connector |
1/4" (6.3mm) Stereo jack |
| Maximum Output Power |
18mW + 18mW (THD+N 0.1% or less, into 32Ω load) |
| Output impedance |
83Ω |
| Working impedance |
16Ω to 300Ω |
| Control Input/Output |
|
| USB |
|
| Connector |
4-pin, USB B type |
| Format |
USB2.0 HIGH SPEED (480Mbps) |
| MIDI IN |
|
| Connector |
5-pin, DIN |
| Format |
Standard MIDI |
| MIDI OUT |
|
| Connector |
5-pin, DIN |
| Format |
Standard MIDI |
| Power |
DC 12V (AC Adapter PS-P1220E included) |
| Power Consumption |
7.2 W |
|
Dimensions (W×H×D) |
186 × 65 × 160 mm |
| Weight |
1.1 kg |
| Operating Temperature Range |
5 to 35°C |
