The Tascam DR-10L Pro is sure to carry on as the industry standard for AV creators, wedding and event capturing, field recording and more. With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications.
*Optional AK-BT1 needed for app control and wireless timecode
*Note : Only use AK-BT1 adapter.
This product not compatible with AK-BT2 adapter.
Tascam DR-10L Pro Key Features
- Ultra-lightweight, compact and wearable design is perfect when stealth is a priority.
- TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm).
- 32-bit float recording and dual AD converter technology means you’ll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels.
- Supports recording in MP3 format
- Huge storage capacity, with support for microSDXC cards up to 512GB.
- Records at least 24.5 hours on two AAA batteries*¹ for all-day video shoots.
- Optional AK-BT1 Bluetooth® adapter (sold separately) adds wireless control and synchronization.
- Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously *².
- LTC jam sync hardwired timecode with an unlimited number of DR-10L Pro units
- Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series.
Additional Features
- Supports recording in MP3 format
- Screw lock mechanism securely connects the microphone connector to the recorder.
- Sliding recording switch mechanism makes it fast and easy to start recording, and prevents accidental operation during recording.
- Lock function disables all operations other than “recording stop” during recording.
- Automatic file closing function to prevent the loss of recorded data if the batteries run out.
- Automatic leveling and limiting prevent distortion caused by overloads.
- Low-cut filter reduces ambient hum and rumble (40Hz/80Hz/120Hz/220Hz).
- Easy-to-read organic EL display.
- Headphone output enables input monitoring and allows you to check recorded files.
- USB Type-C port enables connecting extra power supply and easy data exchange with computers.
- Belt clip included.
- Includes iZotope RX Elements audio production editing software.

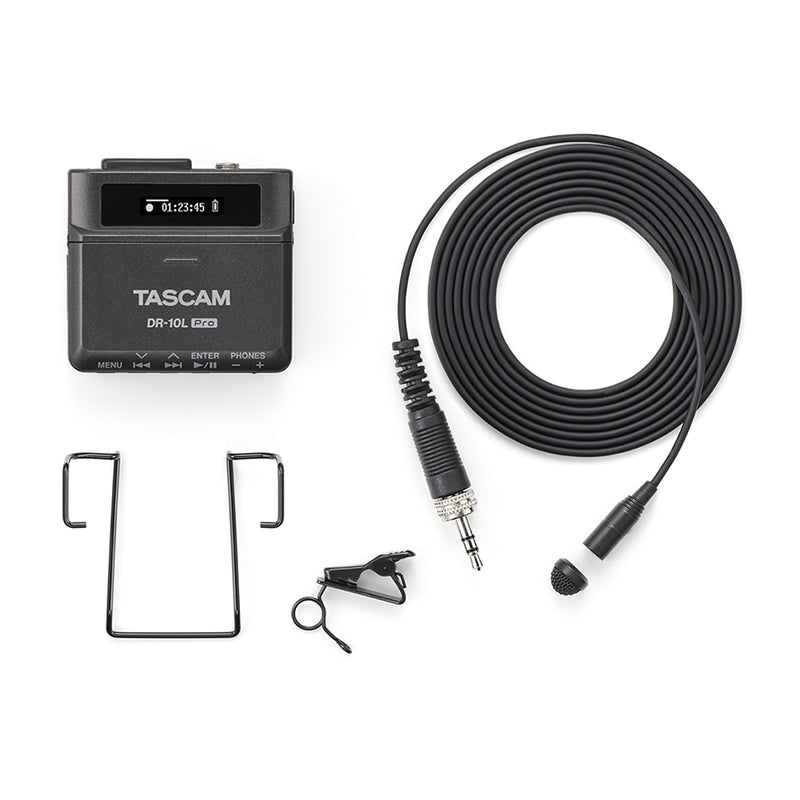

What's in the box?
- DR-10L Pro
- Belt clip
- USB cable (Type A – Type C)
- TM-10L : Lavalier microphone, Microphone clip, Windscreen
- Start-up guide (including warranty)
- TASCAM ID registration guide
-
iZotope RX Elements download card
Specifications
| Recorder specifications |
|
| Recording media |
microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (64GB - 512GB) |
| Recording / playback formats |
|
| WAV (BWF) |
44.1k/48kHz, 16/24-bit, 32-bit float |
| MP3 |
44.1k/48kHz |
| Recording |
128k/192kbps |
| Playback |
32 - 320kbps |
| Analog audio input ratings |
|
| Input |
|
| Connector |
3.5mm(1/8") TRS jack with screw lock |
| Maximum input level |
-11dBV |
| Input gain |
7.5dB - 38dB |
| Input impedance |
2kΩ or higher |
| Lavalier microphone (TM-10L) |
|
| Sensitivity |
-42dBV/Pa |
| Max. SPL |
115dBSPL |
| Cable length |
1.6m |
| Analog audio output ratings |
|
| Headphone output |
|
| Connector |
3.5mm(1/8") stereo mini jack (Dual Mono Output) |
| Maximum output |
10mW + 10mW (THD+N 0.1% or less, into 32Ω) |
| Working impedance |
16ohms to 400ohms |
| Control input/output ratings |
|
| USB port |
|
| Connectors |
USB Type-C |
| Format |
USB2.0 HIGH SPEED mass storage class |
| Bluetooth® device connector |
For Bluetooth® adapter (AK-BT1) only |
| Plug-in power (Mic bias) |
2.3V |
| Power |
2 AAA batteries (Alkaline / Ni-MH / Lithium), USB bus power |
| Power consumption (battery) |
0.3W (MAX) |
| Current consumption (USB bus power) |
0.1A (MAX) |
| Battery (RTC) |
Lithium × 1 (built in with soldering) |
| Dimensions (excluding protrusions) |
53 (W) × 50.7 (H) ×21.4 (D) mm |
| Weight |
65g(including battery) / 43g (without battery) |
| Operating temperature |
0 - 40℃ |
| Included |
DR-10L Pro ×1
Belt clip ×1
USB cable (Type A – Type C) ×1
TM-10L
- Lavalier microphone ×1
- Microphone clip ×1
- Windscreen ×1
Start-up Guide (including warranty) ×1
TASCAM ID registration guide ×1
iZotope RX Elements download card ×1 |
