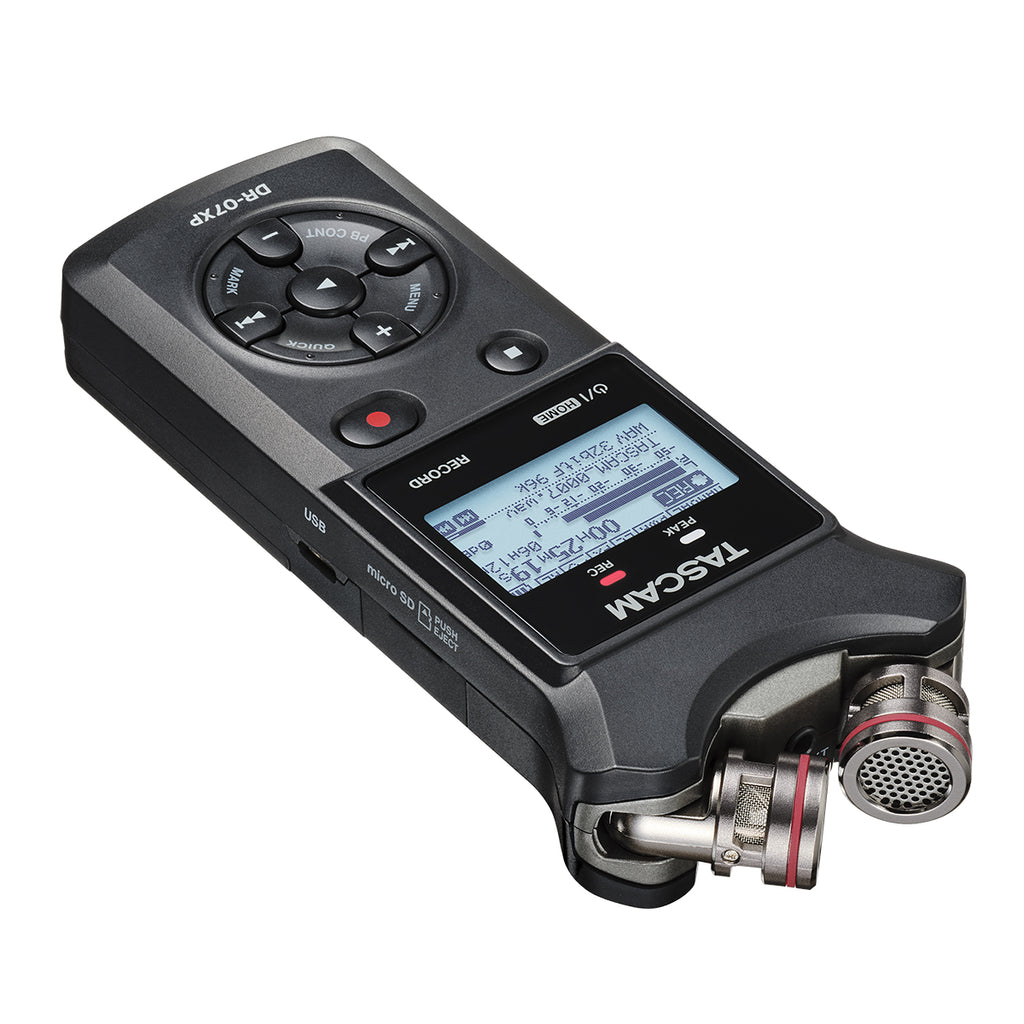

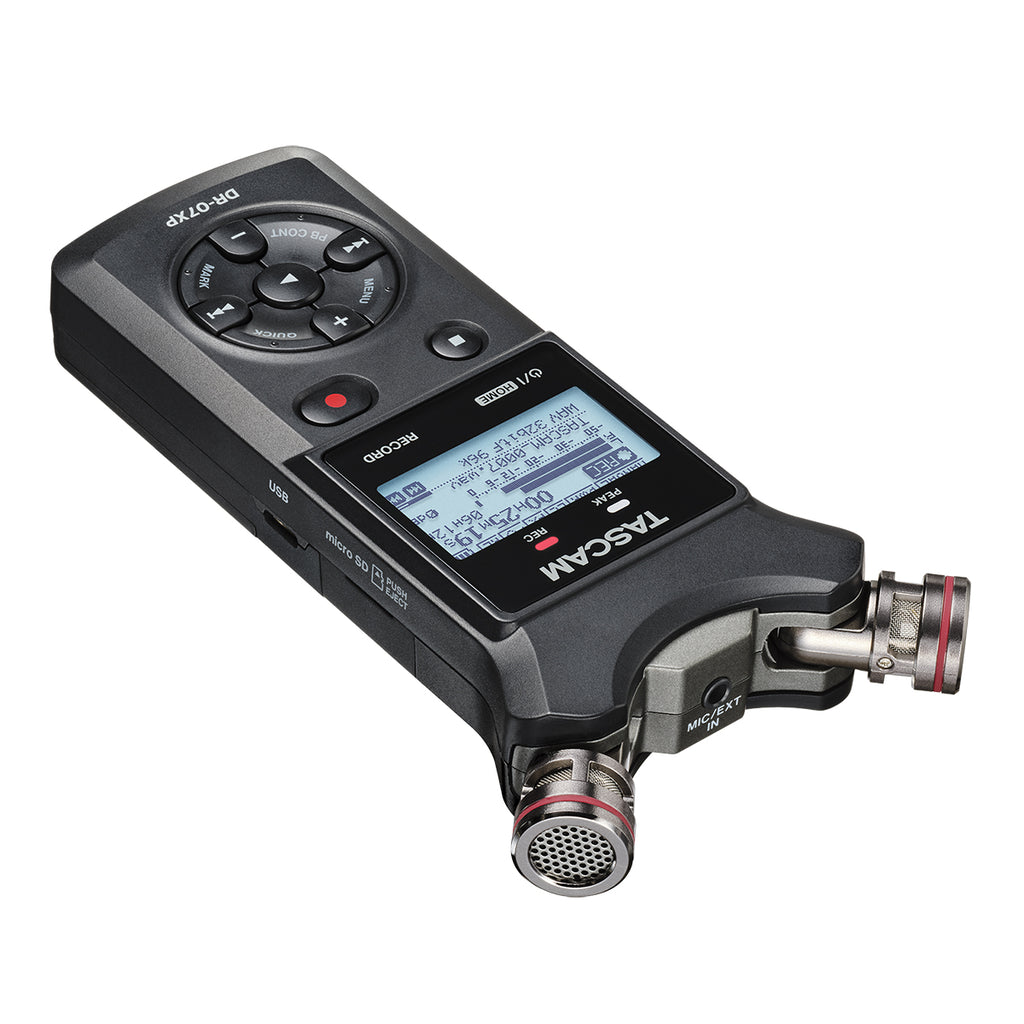

The TASCAM DR-07XP is a portable handheld recorder, that makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
DR-07XP Key Features
- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours operation with 2 x AA alkaline batteries
Additional Features
- microSDXC (up to 512GB) cards can be used as recording media
- USB Type-C port
- Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
- Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR)
- Long recordings as MP3 files possible
- Various recording function (Auto rec, Self timer, Pre rec)
- Overdubbing function
- Limiter and Peak reduction
- Four low-cut filter levels (40 / 80 / 120 / 220Hz)
- Auto Tone output for use with DSLR camera
- Reverb effect for vocal and instrument resonance
- Mark function
- 128×64 pixel graphic LCD with backlight
- Tripod mounting point attaches to any standard tripod
- Stereo mini line output and headphone output
- Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
- Playlist function
- Built-in monaural speaker makes it easy to check your recordings
- Chromatic tuner for tuning musical instruments before recording
What's in the box?
- DR-07XP x 1
- Safety guide (including warranty) x 1
- TASCAM ID registration guide x 1
Specifications
| Recorder specifications |
|
| Recording media/file systems |
microSD cards, microSDHC cards, microSDXC cards (up to 512 GB) |
| Recording/playback formats |
|
| WAV (BWF) |
|
| Sampling frequency |
44.1 kHz / 48 kHz / 96 kHz |
| Quantization bit depth |
16-bit / 24-bit / 32-bit float |
| MP3 |
|
| Sampling frequency |
44.1 / 48 kHz |
| Quantization bit depth |
32 / 64 / 96 / 128 / 192 / 256 / 320 kbps |
| Maximum number of input channels |
2 |
| Maximum number of recordable tracks |
2 |
| Analog audio input/output ratings |
|
| MIC/EXT IN jack (can provide plug-in power) |
|
| Connector |
3.5mm (1/8") stereo mini jack |
| Input Impedance |
18 kΩ or more (when plug-in power is turned off)
2 kΩ or more (when plug-in power is turned on) |
| Nominal input level |
- 20 dBV |
| Maximum input level |
-4 dBV |
| PHONES/LINE OUT jack |
|
| Connector |
3.5mm (1/8") stereo mini jack |
| Output impedance |
12 Ω |
| Nominal output level |
- 14 dBV (10kΩ loaded) |
| Maximum output level |
+2 dBV (10kΩ loaded) |
| Maximum output |
20 mW + 20 mW (32 Ω load) |
| Working impedance |
16 - 250Ω |
| Built-in Speaker |
|
| Output |
0.3W (monaural) |
| USB |
|
| Connector |
USB Type-C |
| Format |
USB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class |
| USB Audio |
|
| Sampling rate |
44.1 / 48 kHz |
| Quantization bit depth |
24-bit |
| Number of inputs |
2 channels (output from this unit) |
| Number of outputs |
2 channels (input to this unit) |
| General |
|
| Power |
2AA batteries (alkaline or NiMH)
USB bus power (5V/0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately) |
| Power consumption |
1.7 W (maximum) |
| Weight |
184 g / 0.406 lb (including batteries)
136 g / 0.30 lb (not including batteries) |
| Operating temperature range |
0 – 40 °C / 32 – 104 °F |
| Dimensions |
|
| Mic closed |
68 x 159.6 x 27.0 mm
2.68 x 6.28 x 1.06 inch |
| Mic opened |
90.3 x 159.6 x 27.0 mm
3.56 x 6.28 x 1.06 inch |
| Included items |
DR-07XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1 |
