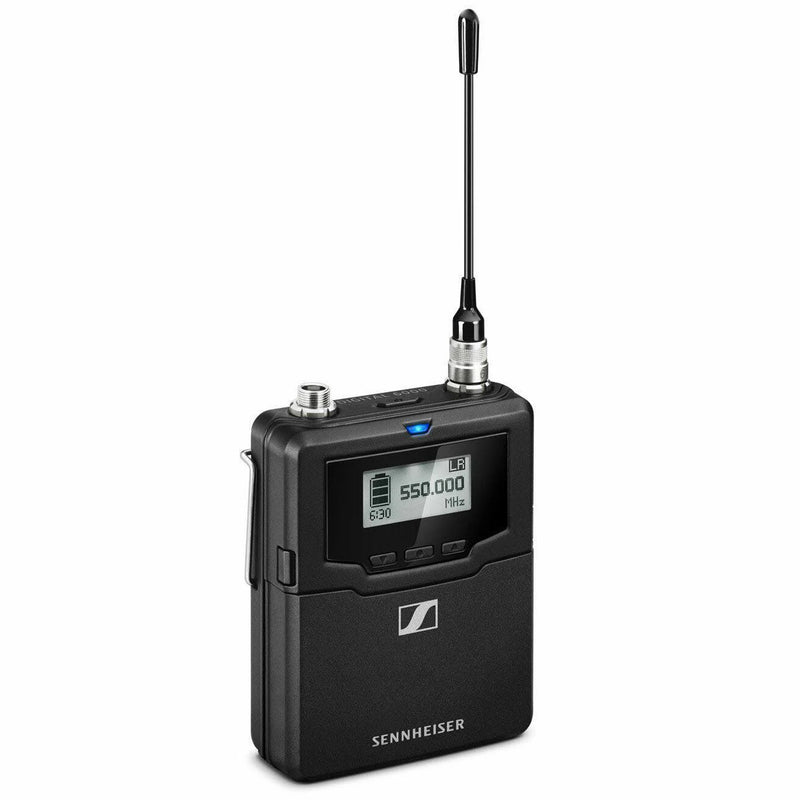

The pocket transmitter Sennheiser SK 6000 is intermodulation-free, which allows operation in an equidistant frequency grid. The transmission concept thereby permits, even in the toughest frequency ranges, maximum spectral efficiency. In short: more channels, maximum transmission performance at all times and hence outstanding signal stability. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible.
The SK 6000 is the high-end solution for guitar/bass or as a transmitter for the Sennheiser clip-on microphones MKE 1, MKE 2 and MKE 40, headsets HSP 2, HSP 4 and SL Headmic.
The magnesium housing combines the benefits of being inconspicuous in size, a robust design and low weight, while offering reliable protection against moisture.
The lithium-ion battery pack BA 61 ensures up to 6.5 hours of operation; there is also the option of operation with batteries using the battery set B 61.
The transmitter is likewise compatible with the EK 6042 and the EM 9046 in Long Range mode.
Features
- Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
- Sennheiser 3-pin connector allows connection to a variety of microphones or an instrument
- Highly effective intermodulation protection
- AES 256 encryption and Digital 9000 encryption
- Compatible with EK 6042 and EM 9046 in Long Range mode
- Li-ion battery packs with 6.5 hours run time
- Magnesium housing
Specifications
Dimensions
|
76 x 62 x 20 mm (with BA 61 battery pack)
|
Audio codec
|
SePAC (Sennheiser Performance Audio Codec)
SeDAC (Sennheiser Digital Audio Codec) |
Modulation scheme
|
Digital modulation Link Density Mode
|
Weight
|
Approx. 147 g (with BA 61 battery pack and belt clip)
|
Audio input
|
3-pin audio socket
|
Power consumption
|
Max. 960 mW
|
RF output power
|
25 mW rms, 50 mW peak
|
Switching bandwidth
|
88 MHz
|
Operating time
|
6.5 h (with BA 61 battery pack)
|
Modulation
|
Digital modulation long range mode
|
Gain
|
Mic: adjustable in 3 dB steps from 0 dB to +42 dB
Line: adjustable in 3 dB steps from -6 dB to +42 dB |
Frequency range
|
470 to 718 MHz, subdivided into 3 ranges:
SK 6000 A1 - A4: 470 - 558 MHz
SK 6000 A5 - A8: 550 - 638 MHz
SK 6000 B1 - B4: 630 - 718 MHz |
Input impedance
|
Mic: 22kΩ
Line: 1 MΩ |
AF frequency response
|
Line: 30 Hz - 20 kHz (3 dB)
Mic: 30 Hz - 20 kHz (3 dB) |
Frequency stability
|
< 5 ppm
|
Tunability
|
25 kHz steps
|
Lower cut-off-frequency
|
Mic: adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz |
Instrument cable emulation
|
Adjustable cable length with 3 steps
|
Encryption
|
AES 256 and Digital 9000 encryption
|
