Description

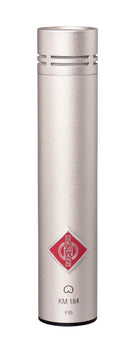

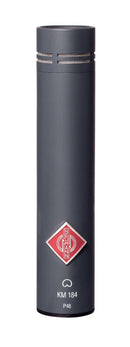

The Neumann KM 184 is a state-of-the-art small diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 184 a worldwide stage and studio standard for many applications ranging from classical piano to heavy metal drums.
Neumann KM 184 features
- uniform cardioid pattern without off-axis coloration
- linear frequency response with a slight treble lift
- very low self-noise (13 dB-A)
- low impedance output for long cable runs without transmission losses
- transformerless circuitry
- compact size, visually unobtrusive
Neumann KM 184 Specifications
| acoustical operating principle: | pressure gradient transducer |
| directional pattern: | cardioid |
| frequency range: | 20 Hz up to 20 kHz |
| sensitivity at 1 kHz into 1 kOhm: | 15 mV/Pa +/1 dB |
| rated impedance: | 50 Ohms |
| rated load impedance: | 1 kOhms |
| equivalent noise level, CCIR: | 22 dB |
| equivalent noise level, A-weighted: | 13 dB-A |
| maximum SPL for THD 0.5%: | 138 dB |
| signal-to-noise ratio, CCIR (re. 94 dB SPL): | 72 dB |
| signal-to-noise ratio, A-weighted (re. 94 dB SPL): | 81 dB |
| maximum output voltage: | 10 dBu |
| supply voltage (P48, IEC 61938): | 48 V +/4 V |
| current consumption (P48, IEC 61938): | 3.2 mA |
| matching connector: | XLR 3 F |
| weight: | approx. 80 g |
| diameter: | 22 mm |
| length: | 107 mm |
KM 184 Polar Pattern
