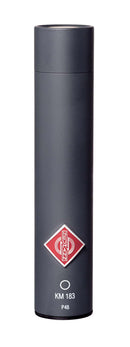

The Neumann KM 183 is a state-of-the-art small diaphragm condenser microphone with a frequency-independent omni-directional polar pattern. Its very natural, transparent sound with very low self-noise and high Sound Pressure Level capability have made the KM 183 a worldwide studio standard for many applications ranging from classical piano to heavy metal drums.
Neumann KM 183 features
- omni-directional polar pattern with excellent off-axis behavior
- diffuse-field equalized
- pressure transducer with unlimited bass response
- very low self-noise (13 dB-A)
- transformerless circuitry
- compact size, visually unobtrusive
Neumann KM 183 Specifications
| acoustical operating principle: |
pressure |
| directional pattern: |
omni directional |
| frequency range: |
20 Hz up to 20 kHz |
| sensitivity at 1 kHz into 1 kOhm: |
12 mV/Pa |
| rated impedance: |
50 Ohms |
| rated load impedance: |
1 kOhms |
| equivalent noise level, CCIR: |
24 dB |
| equivalent noise level, A-weighted: |
13 dB-A |
| maximum SPL for THD 0.5%: |
140 dB |
| signal-to-noise ratio, CCIR (re. 94 dB SPL): |
70 dB |
| signal-to-noise ratio, A-weighted (re. 94 dB SPL): |
81 dB |
| maximum output voltage: |
10 dBu |
| supply voltage (P48, IEC 61938): |
48 V +/4 V |
| current consumption (P48, IEC 61938): |
3.2 mA |
| matching connector: |
XLR 3 F |
| weight: |
approx. 80 g |
| diameter: |
22 mm |
| length: |
107 mm |
