Description
The DPA 4097 Micro Shotgun Microphone is the absolute classic when it comes to plant-micing complex scenes. It features a supercardioid polar pattern, delivering highly directional sound capture with low self-noise and exceptional sensitivity. Designed to handle high SPLs, it ensures undistorted, natural audio even during loud or dynamic speech.
With its linear frequency response, low distortion, and expansive dynamic range, the 4097 excels in challenging environments. Off-axis dialog and background noise are minimized, preserving clarity and quality for pristine recordings in any setting.

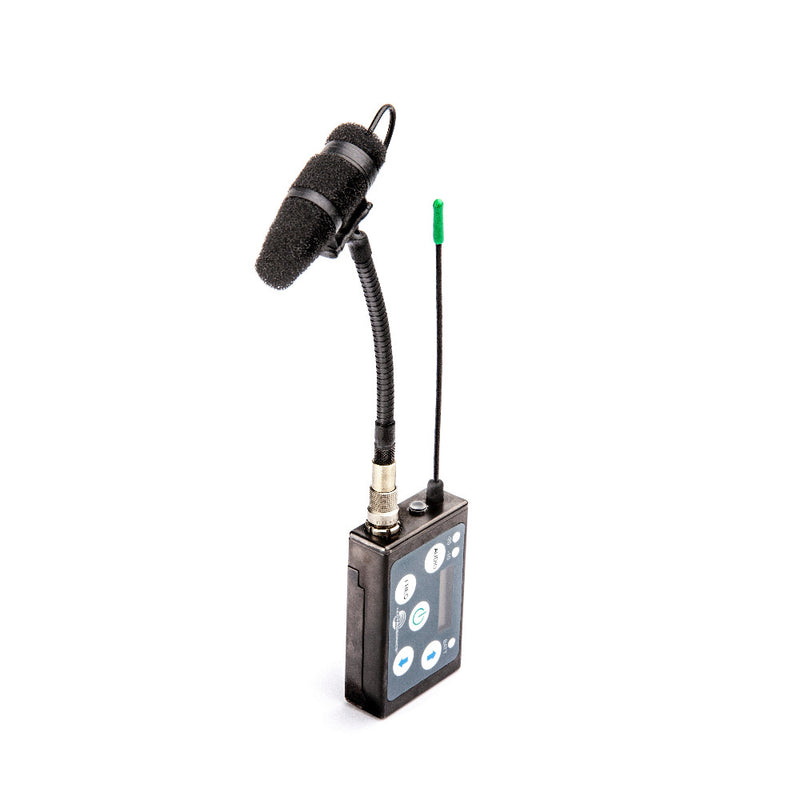

Built for durability, this microphone withstands harsh conditions on film sets, including wind, rain, dust, heat, and cold. Its rugged design, wireless podium mic capability, high RF interference rejection, and sleek Scandinavian aesthetics make it a professional choice for demanding production environments.
DPA 4097 features

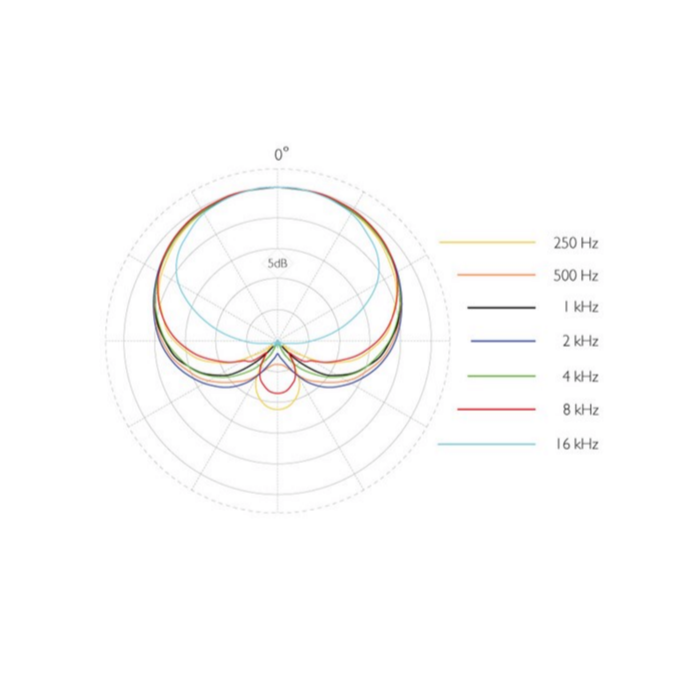

- Supercardioid Polar Pattern
- Low Self-Noise and High Sensitivity
- Handles High SPLs Without Distortion
- Wide Dynamic Range and Low Distortion
- Rugged and Weather-Resistant Design
- High Rejection of Radio Frequency Interference
DPA 4097 Introduction Video
DPA 4097 Frequency Response
DPA 4097 Specifications
| Directional pattern | Supercardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 k |
| Sensitivity, nominal, ±3 dB at 1 kHz | 16 mV/Pa; -36 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic range | Typ. 110 dB |
| Max. SPL, THD 10% | 135 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD4099-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Weight | 10 g (.35 oz) |
| Microphone length | 10.4 cm (4 in |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Colors | Black |
