Description

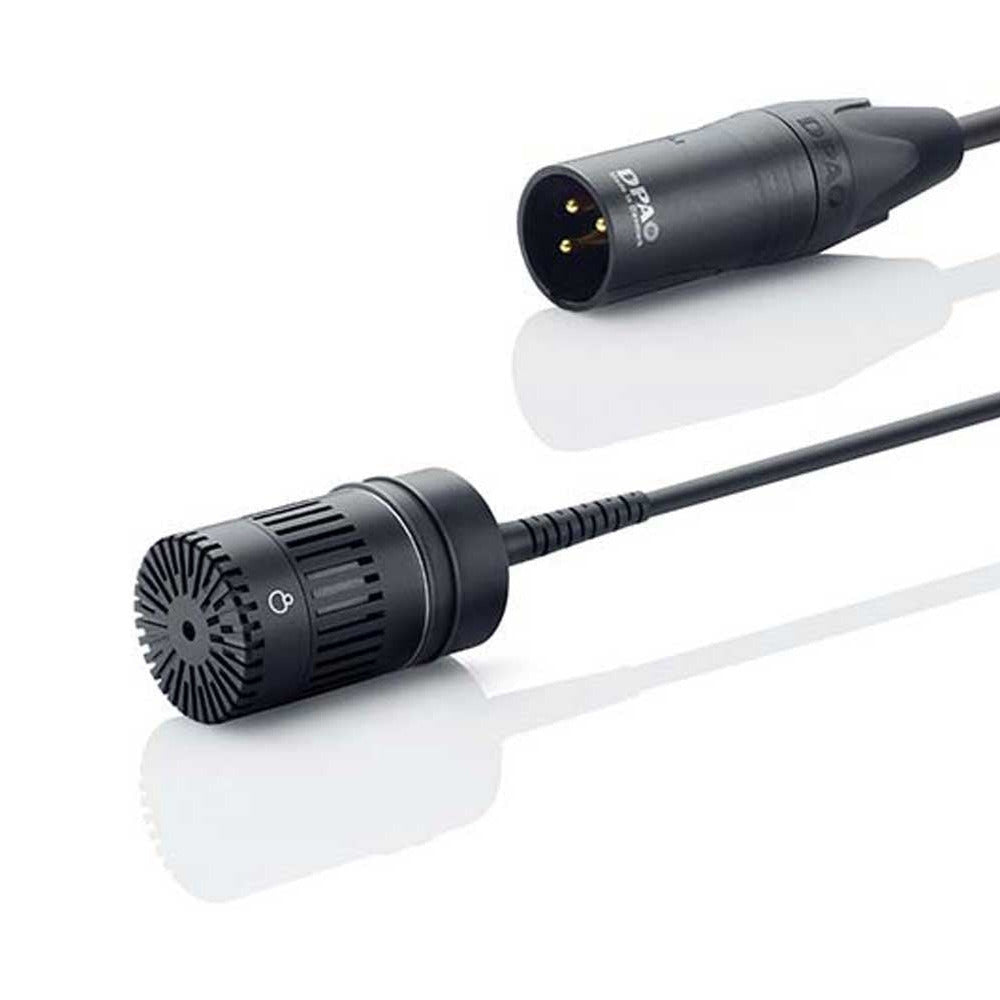

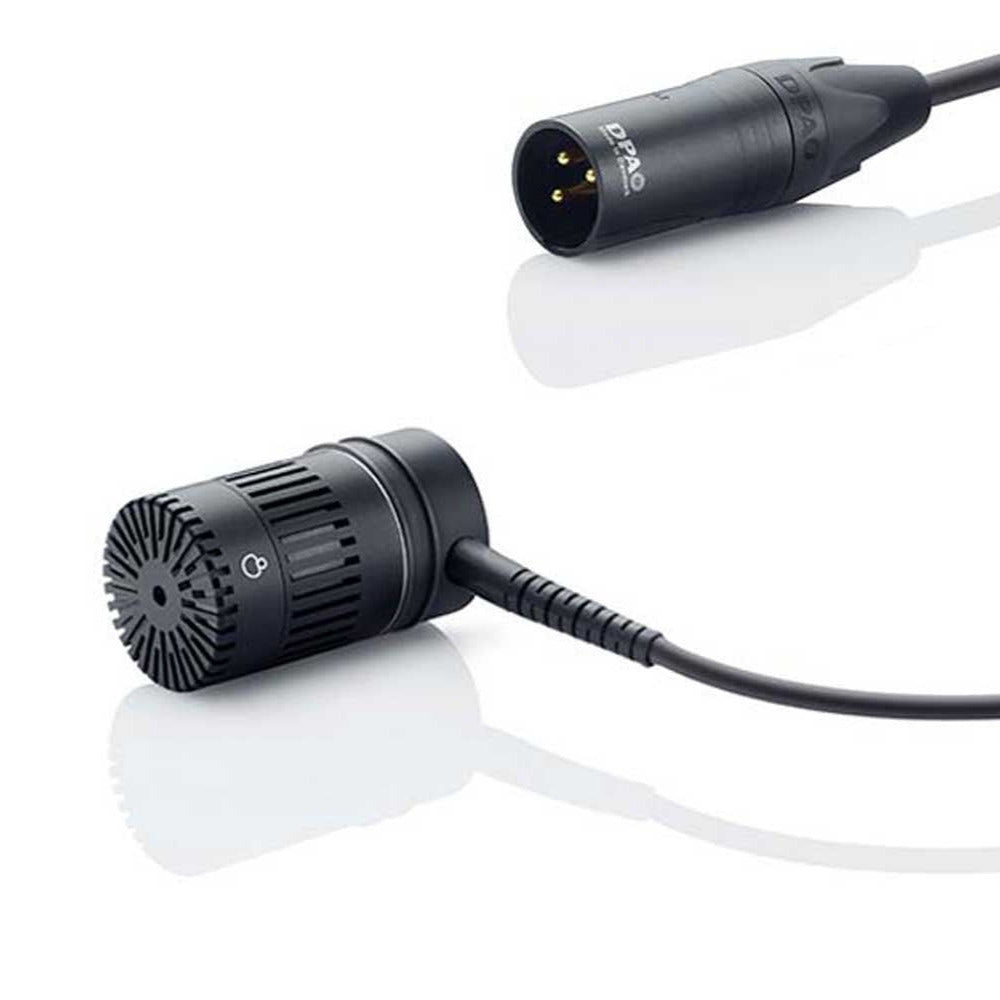

The DPA 4018ER/ES Supercardioid Microphone is a precision-crafted solution for professional broadcast, film, and recording environments where discreet yet highly directional audio capture is essential. The DPA 4018 ES has an active side-exit cable, with which it offers a low-profile appearance without compromising on performance. Whether mounted on a table, podium, or suspended from above, it delivers exceptional sound isolation and clarity.
Engineered with a frequency-consistent supercardioid pickup pattern, the 4018ER/ES ensures accurate sound reproduction across the entire polar range. Unlike typical supercardioids, it minimizes the rear lobe, avoiding frequency-dependent peaks and dips for a more natural, isolated sound. Its smooth off-axis response maintains sonic integrity, making it an excellent choice for interviews, dialogue capture, and precision spot miking in orchestral settings.
Part of DPA’s modular d:dicate™ series, the 4018ER/ES can be reconfigured easily with other DPA capsules and preamps—no tools required. The DPA 4018 ES includes the SM4000-C suspension mount for flexible, secure hanging applications, perfect for capturing ambient or sectional audio with refined detail.
DPA 4018ER/ES features
- Ultra-compact table or hanging mic
- Frequency consistent polar pattern
- Highly directional
- Low-key appearance
DPA 4018ER/ES polar pattern
DPA 4018ER/ES Off-Axis Response
DPA 4018ER/ES Specifications
| Directional pattern | Supercardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz - 18 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 12 mV/Pa; -38.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 23 dB |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 121 dB |
| Max. SPL, THD 10% | 142 dB SPL peak |
| Rated output impedance | 100 Ω |
| Minimum load impedance | 2 |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 3.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Weight | 109 g (3.8 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| 19 mm (0.75 in) | 35 mm (1.38 in) |
| Maximum output voltage, RMS | 2.2 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Matching tolerance (frequency response and sensitivity) | ±1 dB |
| Phase deviation for kit | < 10° |
