The DPA 3506A Stereo Kit with matched 4006A Omnidirectional Microphones is a premium solution for capturing crystal-clear, reference-grade stereo sound. Revered in high-end recording and film production, this kit is designed for professionals who demand unmatched sonic transparency and natural detail across a wide range of applications, from orchestral performances to field recording.
At the heart of the kit are two factory-matched 4006A omnidirectional condenser microphones, carefully selected to within ±0.5-1 dB on both frequency response and sensitivity. These phantom-powered microphones offer an ultra-linear frequency response from 10 Hz to 20 kHz (±2 dB), extremely low noise, and high sensitivity. ideal for A-B stereo configurations and capturing subtle sonic textures with precision.

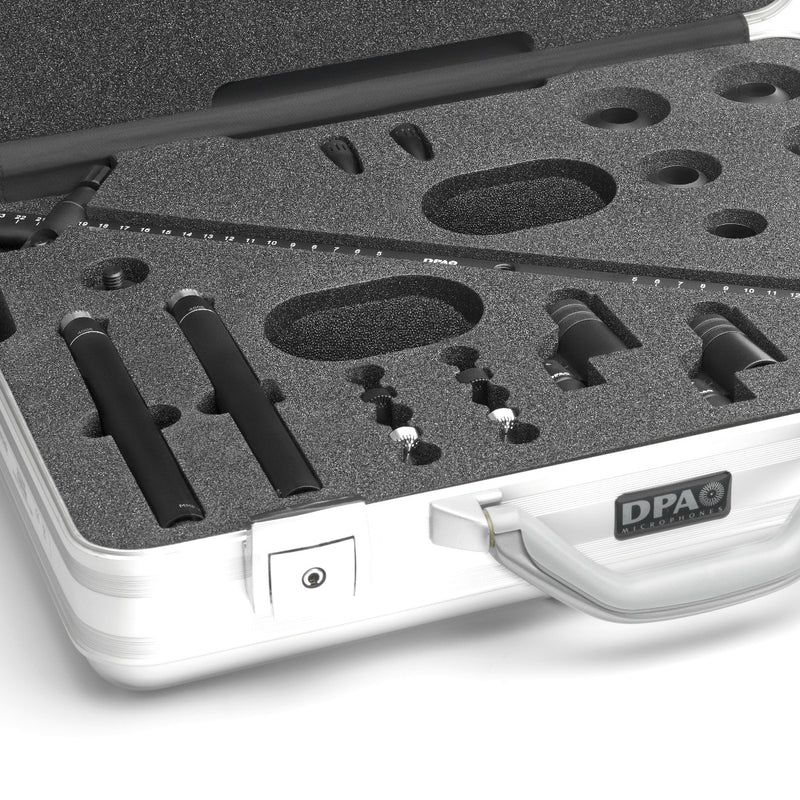

The 3506A kit includes windscreens, a stereo boom, clips, holders, and a full range of accessories such as interchangeable grids and acoustic pressure equalizers. These components allow acoustic tailoring of the mic without introducing phase shifts or distortion, delivering the most versatile and accurate stereo capture system available.
DPA 3506A features
- Matched 4006A mics ±0.5 dB
- Linear 10 Hz – 20 kHz response
- Ultra-low noise, high sensitivity
- Includes windscreens, clips, stereo boom
- Swappable grids for tonal variation
- No phase shift or distortion
DPA 3506A (DPA 4006A) Specifications
| Directional pattern |
Omnidirectional |
| Principle of operation |
Pressure |
| Cartridge type |
Pre-polarized condenser |
| Frequency response |
10 Hz - 20 kHz |
| Effective frequency range ±2 dB |
10 Hz - 20 kHz |
| Sensitivity, nominal, ±2 dB at 250 Hz |
36 mV/Pa; -28,9 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted |
Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 |
Typ. 27 dB (max. 29 dB) |
| Distortion, THD < 1% |
133 dB SPL RMS, 136 dB SPL peak |
| Dynamic range |
Typ. 121 dB |
| Max. SPL, THD 10% |
146 dB SPL peak |
| Switchable attenuator, filters etc. |
0 dB / -20 dB |
| Rated output impedance |
200 Ω |
| Minimum load impedance |
2 |
| Cable drive capability |
100 m (328 ft) |
| Output balance principle |
Impedance balancing with Active Drive |
| Common mode rejection ratio (CMRR) |
> 60 dB |
| Power supply (for full performance) |
P48 (Phantom Power) |
| Current consumption |
2.8 mA |
| Connector |
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Weight |
163 g (5.7 oz) |
| Microphone diameter |
16 - 19 mm (0.6 - 0.75 in) |
| Capsule diameter |
16 mm (0.6 in) |
| Microphone length |
170 mm (6.7 in) |
| Maximum output voltage, RMS |
8.0 V |
| Polarity |
+V at pin 2 for positive sound pressure |
| Temperature range |
-40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) |
Up to 90 % |
| Matching tolerance (frequency response and sensitivity) |
±0.5 dB |
| Phase deviation for kit |
< 5° |
| Colors |
Matte black |
