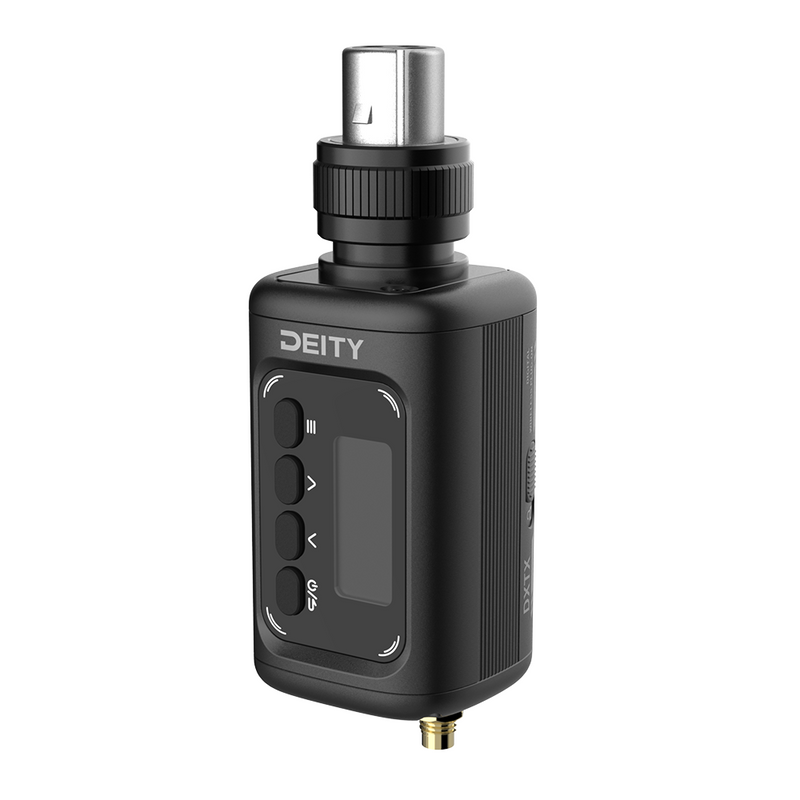

The Deity Theos DXTX isn’t just a plug-on transmitter—it’s a game-changer for field recordists, ENG crews, and sound mixers demanding pristine audio in high-stakes environments. Engineered for both power and flexibility, it delivers simultaneous 32-bit float recording and UHF wireless transmission, capturing every nuance without fear of clipping—no matter the gain staging.
(There is a boom pole bracket available here)
Equipped with a Neutrik locking XLR input, the DXTX supports both 48V phantom power for condenser mics and 5V bias for lavaliers, making it a universal fit for your audio arsenal. Record directly to the onboard microSD card (up to 128GB) while transmitting in real time across a robust UHF spectrum from 550MHz to 960MHz, ensuring global operability and frequency agility.
A built-in analog limiter provides real-time protection during transmission, while dual AA batteries deliver up to 14 hours of runtime. For longer shoots, plug into USB-C for external power options, including power banks and D-Tap rigs.
Control it all remotely with BitConnectify™ 2.0, Deity’s next-gen Bluetooth tech, giving you full configuration and status monitoring up to 250 feet (75 meters) away via your smartphone or tablet.
Deity DXTX Key Features:
- 32-bit Float Recording + Wireless Transmission – Never worry about peaking again.
- Locking XLR with 48V Phantom Power – Ideal for shotgun mics in the field.
- microSD Slot (128GB max) – Backup recording without compromise.
- Wideband UHF (550–960MHz) – Flexible, interference-resistant transmission.
- Analog Limiter – Clean audio even during unexpected spikes.
- Dual AA Power – Up to 14 hours of freedom, plus USB-C power for flexibility.
- BitConnectify™ 2.0 – Wireless remote control with extended range.
- Compatible with the Deity DXTX 5-Pin Adapter for stereo mic use
DXTX Specifications:
| Screen: |
Color screen |
| Frequency range: |
550MHz ~ 960MHz; ≤100mW |
| Input type: |
Neutrik XLR-3 Locking Input |
| Power: |
Dual AA Battery; Up To 14Hrs* of Battery Life
External Power via USB-C |
| Recording quality: |
32-Bit Float / 24-Bit; Supports ≤128Gb MicroSD |
| Connectivity: |
Remote Control the DXTX with BitConnectify™ 2.0; Up To 250ft Bluetooth Range |
| Phantom power: |
Supplies 48V phantom power.
Also compatible with analogue 5V Mic Bias and Line signals |
| RF transmission power |
up to 100mW |
| Limiter: |
Analog limiter built in |

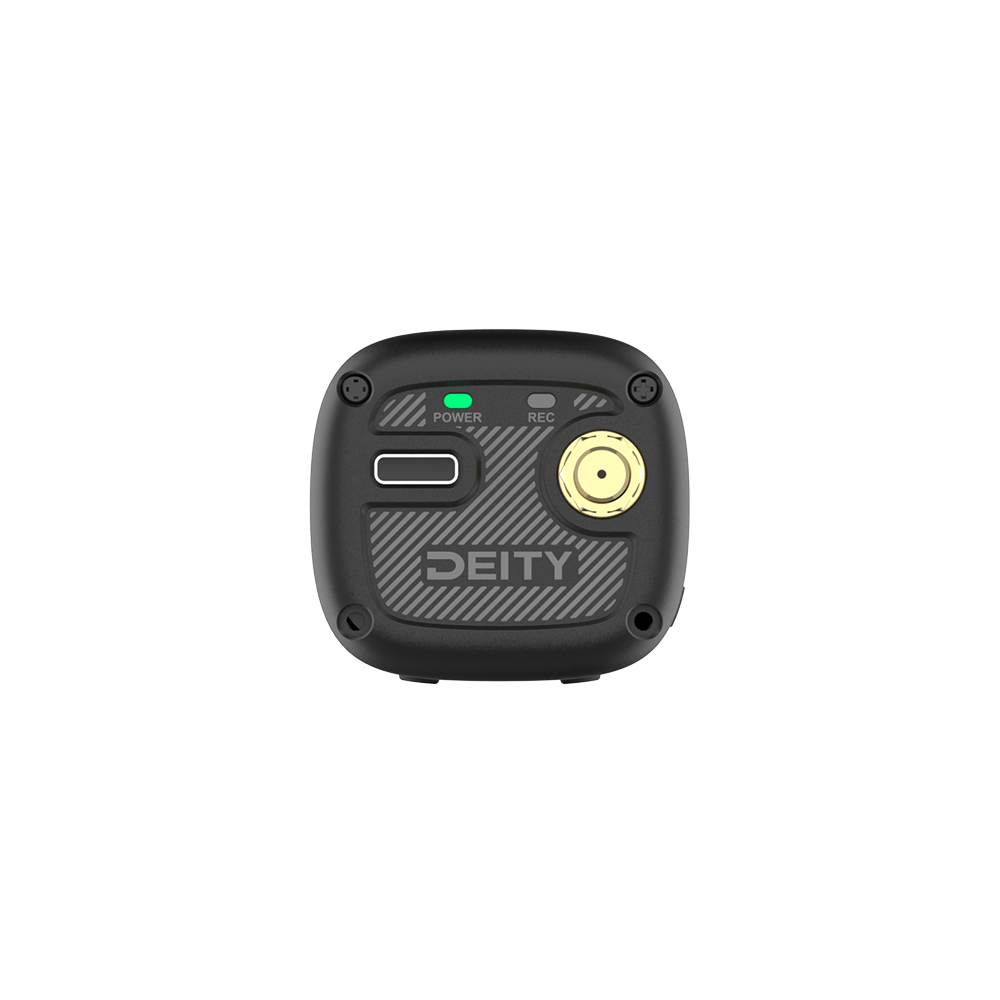

| USB-C connection |
External power and firmware update |
| Antenna: |
External SMA antenna |
| Size: |
209 x 54 x 145 mm |
| Weight |
196 grams (excl batteries) |
Whether you’re mounting on a boom, rigging a podium mic, or capturing sound from a vintage ribbon, the Deity Theos DXTX ensures your signal is clean, strong, and uncompromised—from take one to wrap.
Deity Theos DXTX package includes:
1x DXTX Plug-On Transmitter, 2x AA Deity Batteries, 1x Antenna, 1x Antenna Cut Guide, 1x Warranty QR Code Card
