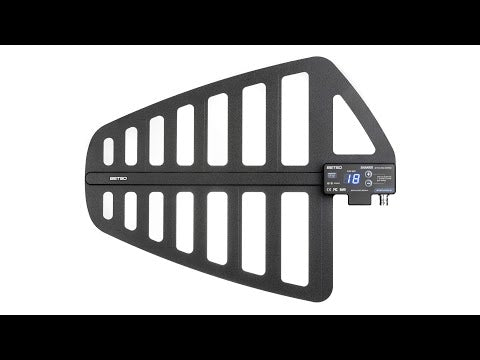

The SHARKIE is a compact, wideband UHF, active receiver antenna with Log Periodic Dipole Array (LPDA) structure and cardioid directivity. It's extremely low noise amplifier with easy gain setting is ideal for variable coaxial cable length attenuation compensation in the field. Rock solid mechanical construction guarantees careless functionality both in indoor and outdoor locations.
Features
- Easy gain setting with automatic last set gain storing
- Brightness of LED display can be automatically adjusted according to ambient light
- Brightness of LED display can be also set manually to requested level
- Display can be completely turned off with ability to show preset gain value upon button request
Specifications
| Frequency range |
470 MHz to 850 MHz |
| Input filters attenuation |
High below 450 MHz (for example -82dB @ 100 MHz)
High above 870 MHz (for example -35dB @ 2.4 GHz) |
| Antenna gain |
8 dB of average gain (peak 9 dB)
|
| Antenna directivity |
Cardioid
|
| Antenna polarization |
Linear
|
| Amplifier gain |
-9 to 18 dB
|
| Amplifier IC noise |
Ultra low noise < 0.75 dB
|
| Antenna VSWR |
Excellent < 1.2 (max. 0.8% of received signal power is reflected)
|
| Amplifier IP3 |
Very high > 34 dBm
|
| Display |
Bright blue LED with automatic or manual brightness settings and stand-by mode
|
| Powering |
External powering 5 - 20 V DC
|
| Current consumption |
35 mA
|
| Mechanic construction |
CNC milled, anodized aluminium alloy and glass-reinforced epoxy laminate
|
| Mounting |
1/4" and 3/8" threads
|
| Dimensions (h x w x d) |
275 x 350 x 21 mm (10.83" x 13.78" x 0.82")
|
| Weight |
approx. 320 g (0.7 lb.)
|
