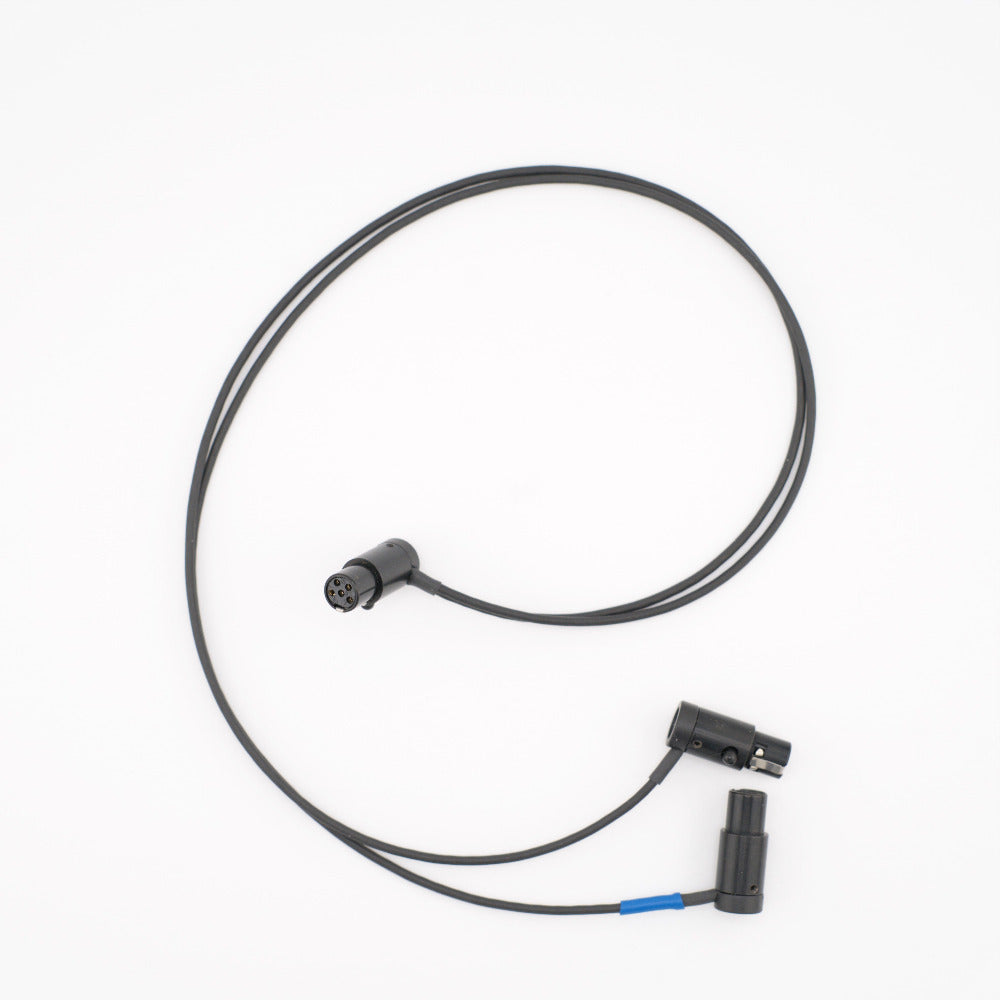

TA5F mini-XLR5 to 2x TA3F mini-XLR3 Splitter Cable. Ideal for connecting wireless receivers with TA5 outputs to, for example, inputs 4-6 of a Sound Devices 833.
- Y splitter cable

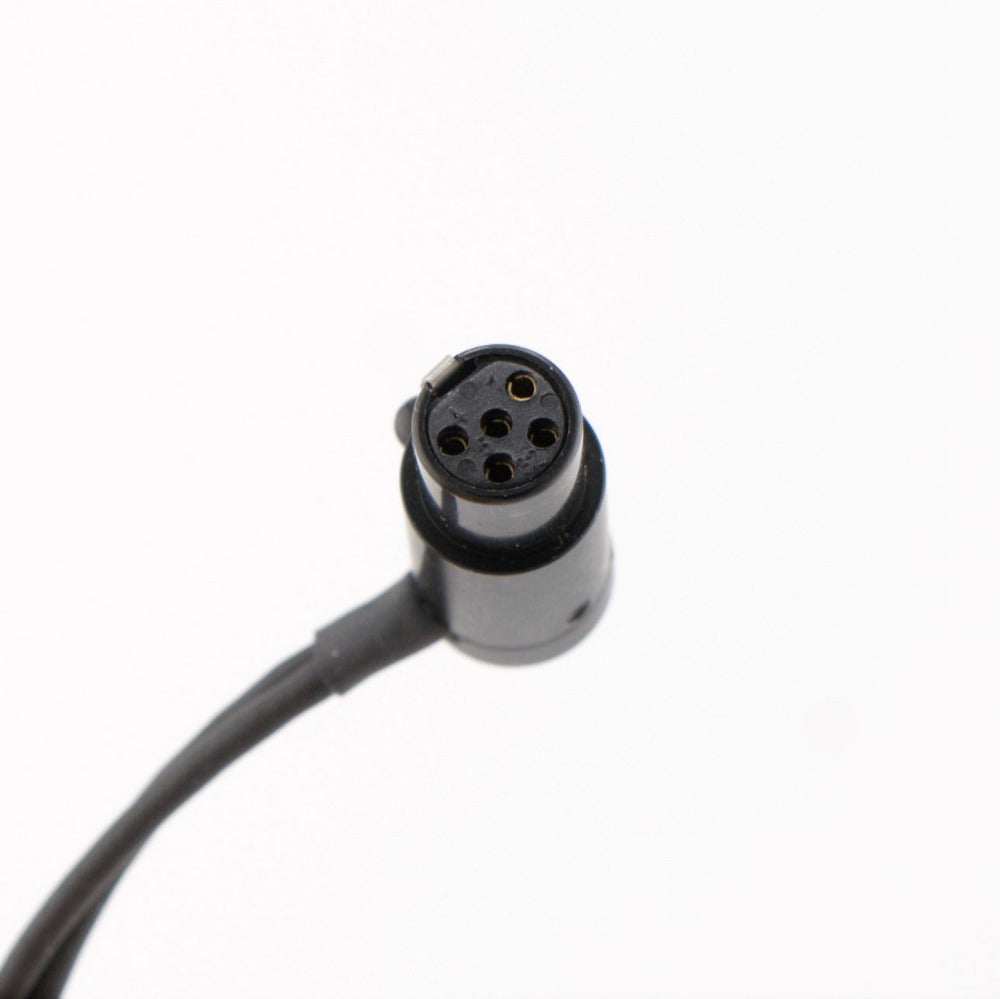

- 5-pin mini-XLR(F)/TA5(F) female connector to 2 x 3-pole TA3(F) female connectors
- High quality shielded cable
- symmetrical
- ground not connected to connector housing (request if you want it connected)
- Configurable low-profile connector on each side if needed
- Configurable cable length
- Labelling available upon request*
- Connector colours available upon request*
Wiring protocol:
| Mini-XLR5F pins
|
Mini XLR3F (A) pins |
Mini XLR3F (B) pins
|
|
1 - GND
2 - Hot A
3 - Cold A
4 - Hot B
5 - Cold B
|
1 - GND
2 - Hot A
3 - Cold A
|
1 - GND
2 - Hot B
3 - Cold B
|
*Please add a note to your order with the requested colours and/or labelling you would like for the connectors, if applicable.
