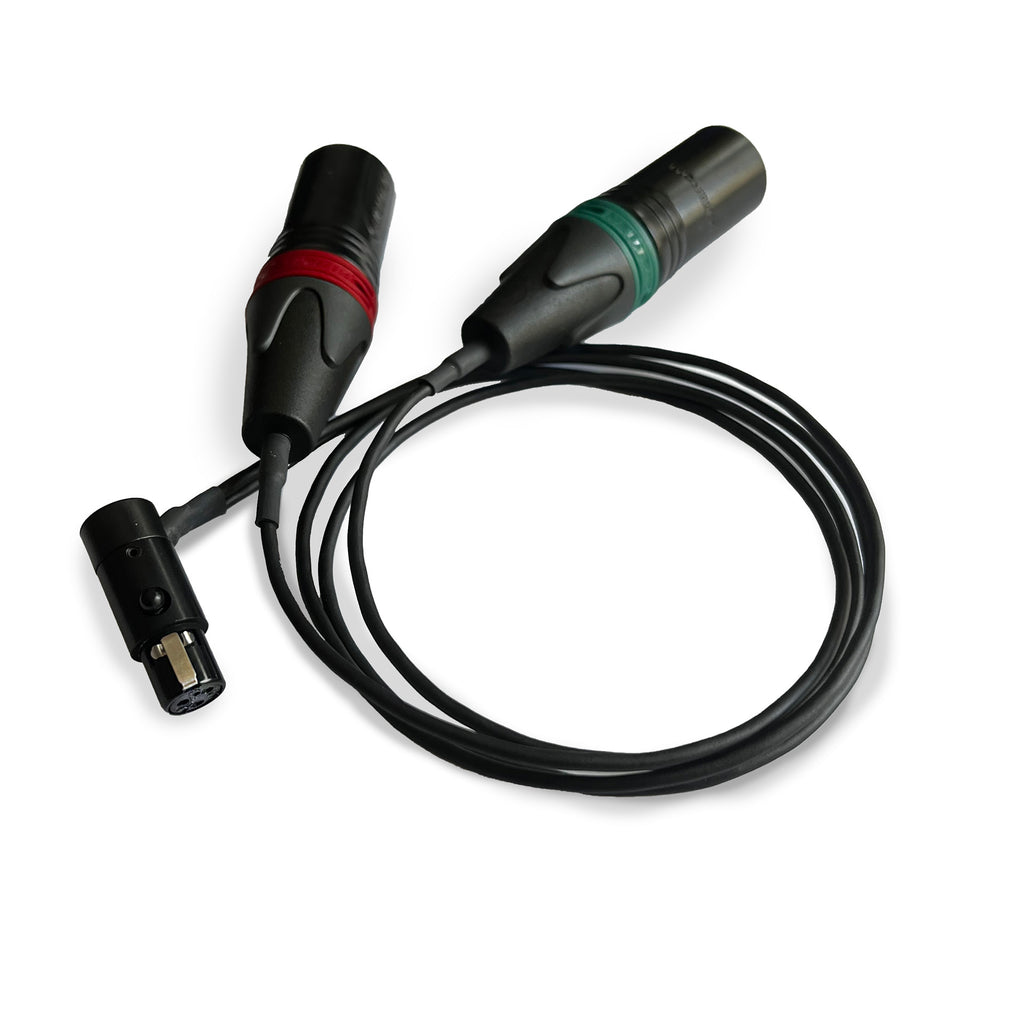

The Austrian Cables AUC-129 is a splitter cable from 1x TA3F to 2x XLR3M connectors. Ideal for use as a 2 channel output cable (line out / AES) for the Sonosax SX-R4 recorder.
Austrian Cables AUC-129 Cable Features:
- Y splitter cable
- 3-pin mini XLR(F)/TA5(F) female connector to 2 x 3-pole XLR(M) male connectors
- High quality shielded cable
- asymmetrical
- ground not connected to connector housing (request if you want it connected)
- Configurable low-profile connector on each side if needed
- Configurable cable length
- Labelling available upon request*
- Connector colours available upon request*
Wiring protocol:
| Mini-XLR3F pins
|
XLR3F (A) pins |
XLR3F (B) pins
|
|
1 - GND
2 - Hot
3 - Cold
|
1 - GND
2 - Hot
3 - Cold
|
1 - GND
2 - Hot
3 - Cold
|
*Please add a note to your order with the requested colours and/or labelling you would like for the connectors, if applicable.
