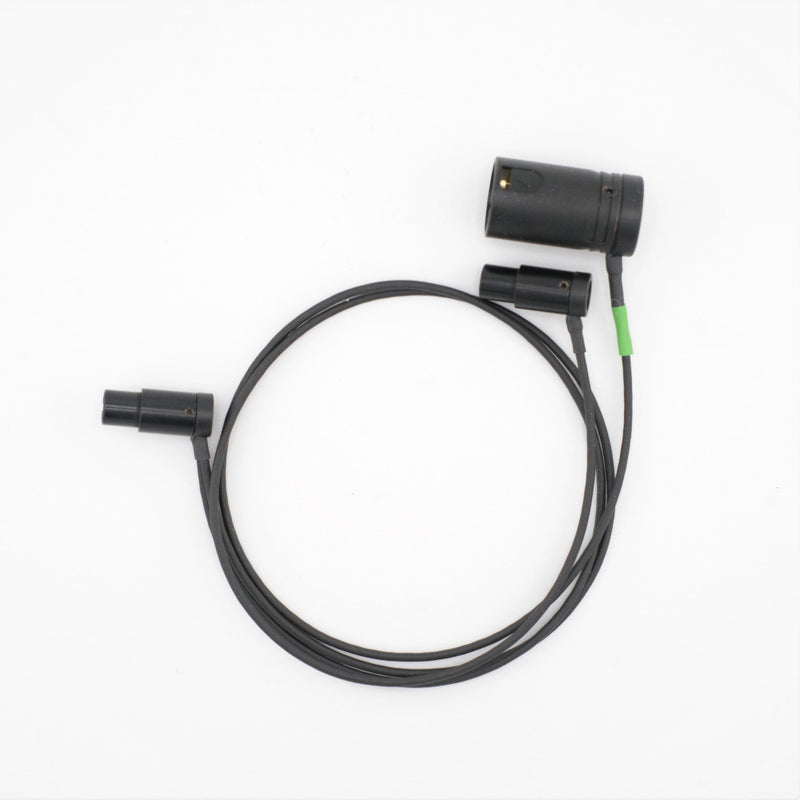

Austrian Cables AUC-113 TA5F to XLR3M & TA3F Splitter Cable for audio out from Wisycom MCR54/BPA54 to, for example, inputs 3 and 4 of a Sound Devices 833.
AUC-113 Features
- Y splitter cable

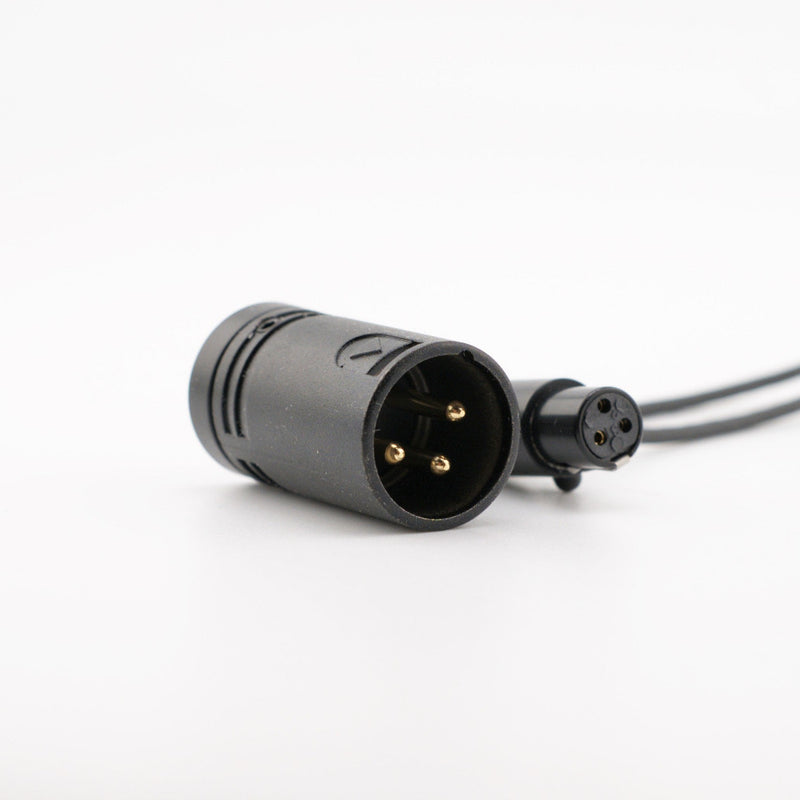

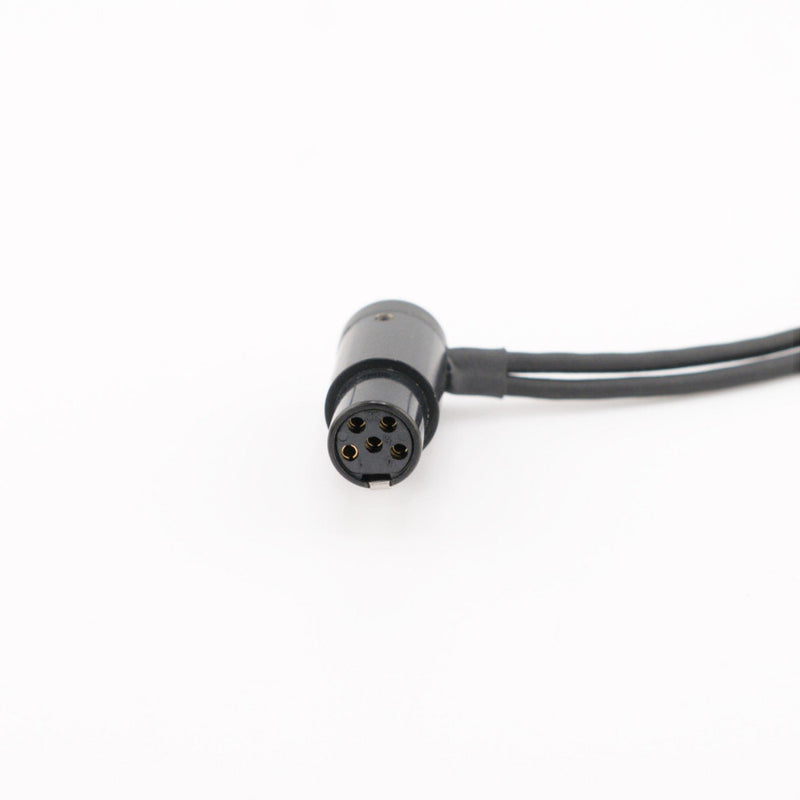

- 5-pin mini XLR(F)/TA5(F) female connector to 1 x 3-pole XLR(M) male connector and 1 x TA3(F) female connector
- High quality RF shielded cable
- symmetrical
- ground not connected to connector housing (request if you want it connected)
- Configurable low-profile connector on each side if needed
- Configurable cable length
- Labelling available upon request*
- Connector colours available upon request*
Wiring protocol:
| TA5F pins
|
XLR3M (A) pins |
TA3F (B) pins
|
|
1 - GND
2 - Hot A
3 - Cold A
4 - Hot B
5 - Cold B
|
1 - GND
2 - Hot A
3 - Cold A
|
1 - GND
2 - Hot B
3 - Cold B
|
*Please add a note to your order with the requested colours and/or labelling you would like for the connectors, if applicable.
