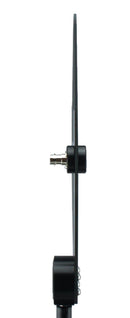

Audio Wireless LPDA-P Passive Wireless Antenna

Audio Wireless LPDA-P (Log Periodic Dipole Array - Passive) antenna is designed to operate over a very wide-band frequency range, operating over the 470–1525 MHz, with an impressive SWR of less than 2 for the whole operating range.

LPDA-P can be used with the Radio Mic receivers to enhance the reception or can be used as low power Transmit antenna to boost the output power up to 6dB.

The LPDA-P can be used for applications requiring increased distance between the transmitter and the receiver, such as in during filmmaking, documentaries, studios theatres, and more.

This LPDA-P is manufactured in a paddle-style antenna using a multi-layer PCB design technique for reliability and is suited for portable applications as well as fixed installations for indoor and outdoor applications. These antennas are compatible to be used with any UHF wireless receiving system providing a directional coverage pattern, and 6 dB of RF gain improvement over standard receiver mono-pole antennas can be achieved.

The antennas are constructed using an advanced multi-layer PCB design technique with copper-clad epoxy fiberglass to withstand heavy-duty in a harsh environment, providing long life and consistent performance under difficult operating conditions.
