The Audio-Technica AT4022 Omnidirectional Condenser Microphone is the ideal solution for capturing Ambience Sound both on Set or in the field. With its flat, extended frequency response and wide dynamic range, this mic excels in both studio and live settings, providing exceptional performance even in high SPL environments. The omnidirectional polar pattern ensures maximum ambient pickup, preserving the authenticity of the recording location.
Designed for digital recording equipment, the AT4022 features low self-noise and a low-mass diaphragm for superb transient response. Its switchable 80 Hz high-pass filter and 10 dB pad offer added flexibility for various recording scenarios. Truly the perfect companion on every shoot for capturing a-grade Ambience.
Audio-Technica AT4022 features
- Outstanding performance and rugged construction, ideal for critical studio & live applications
- High SPL handling and wide dynamic range
- Flat, extended frequency response
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Omnidirectional polar pattern provides maximum ambient pickup
- Low self noise perfectly suited for digital recording equipment
- Exceptional reproduction of low frequency sounds
- Low-mass element for superb transient response
Audio-Technica AT4022 Specifications

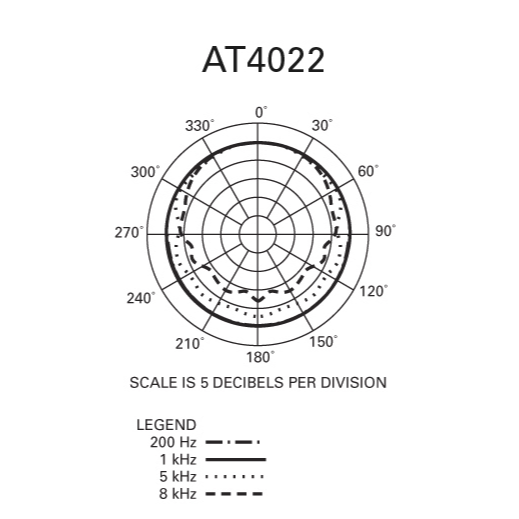

| Polar Pattern |
Omnidirectional |
| Frequency Response |
20 - 20.000 Hz |
| Low Frequency Roll Off |
80 Hz, 18 dB/octave |
| Open Circuit Sensitivity |
-34 dB (19.9 mV) re 1V at 1 Pa |
| Maximum Input Sound Level |
146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal) |
| Dynamic Range |
133 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio |
81 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements |
48V DC, 3.0 mA typical |
| Weight |
124g |
| Dimensions |
144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter |
| Output Connector |
Integral 3-pin XLRM-type |
| Accessories Included |
AT8405a stand clamp for 5/8"-27 threaded stands
windscreen
protective carrying case |
