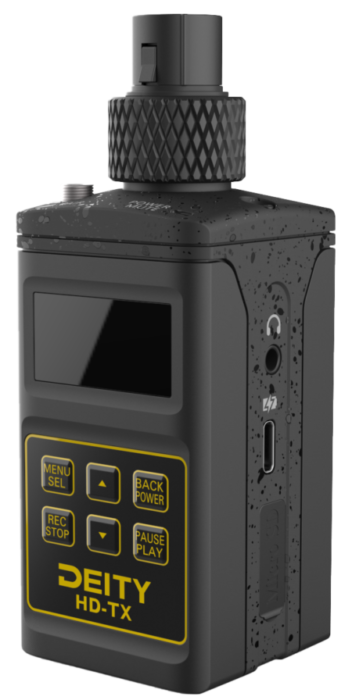

The Deity HD-TX is an XLR transmitter that is truly unique and different. Its compact form factor makes it lightweight enough for boompoles and when combined with a shotgun mic, its built-in recorder and headphone jack make it so you don’t need any other sound gear to capture great audio.
Main Features
- Guard Rail Analog Limiter
- 1.3″ OLED display
- +48V Phantom Power
- ~10hrs of battery life at 100mW
- Multiple RF Outputs (10mW, 25mW, 50mW, 100mW, AUTO)
- 75Hz and 150Hz Low cut filters
- Record 24bit/48kHz WAV files to microSD card

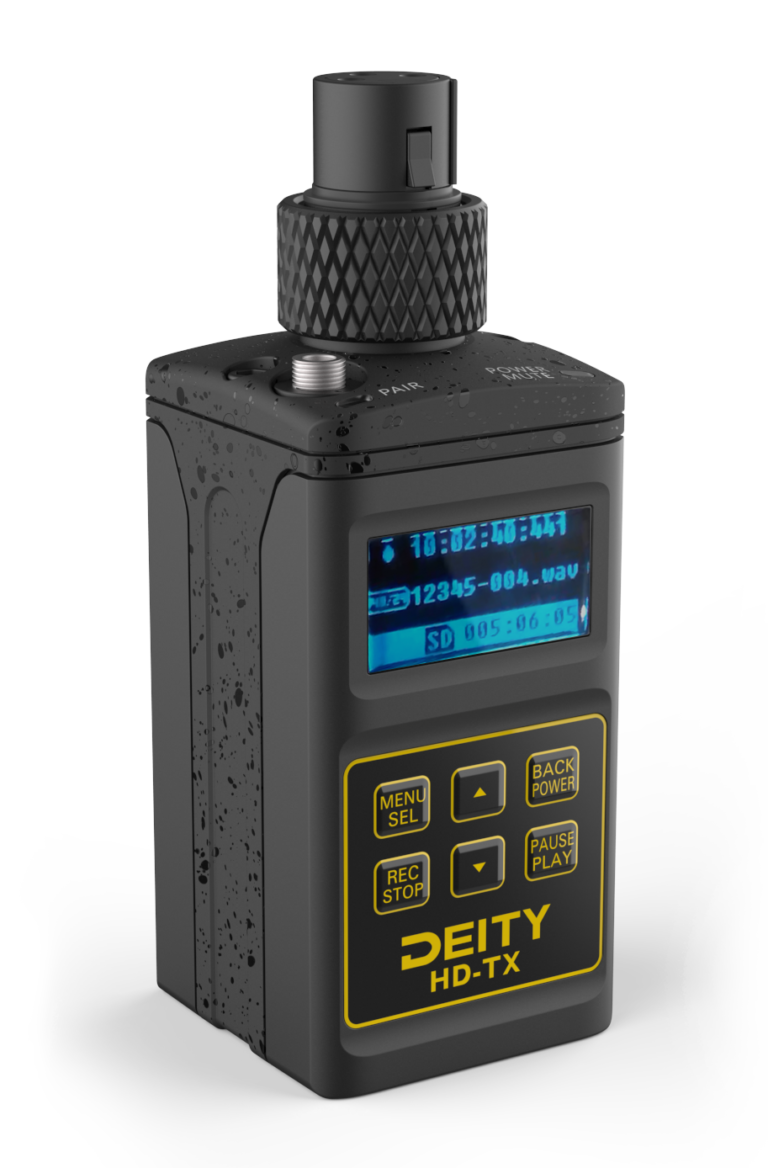

Transmit and Record Simultaneously
When the HD-TX is plugged into a phantom-powered microphone, it can transmit and record simultaneously. Never worry about RF signal interference ever again. The built-in audio recorder ensures that you will always have a back-up.
Specifications:
| Wireless Transmission |
Digital 2.4 GHz |
| Encryption |
Yes |
| Sample Rate |
48 kHz / 24-Bit |
| Form Factor |
Plug-on |
| RF Output Power |
10 / 25 / 50 / 100 mW (switchable) |
| Aduio I/O |
1 x XLR 3-Pin Female Balanced Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Mic/Line Input (Lockable)
1x 1/8" / 3.5 mm TRS Female Headphone Output
|
| Phantom Power |
+ 48 V - XLR Input
|
| Plug-In Power |
3 V - 3.5 mm Input
|
| Pad |
Up to -12dB
|
| Muting |
Mute Switch
|
| Gain Range |
-12 to +36 dB
|
| Signal Processing |
High-Pass Filter: Off, 20 - 200 Hz High Frequency Boost: Off, +1 - +10dB @ 7Khz
|
| Frequency Response |
20 Hz to 20 kHz
|
| Antenna |
1 x 1/4 Wave Internal, Fixed
|
| Power Requirements |
Battery or Bus Power (USB)
|
| Battery Type |
1 x Built-In Rechargeable (included)
|
| Internal Battery Capacity |
2600mAh
|
| Battery Charging Time |
90 Minutes
|
| Approx. Battery Life |
~12 Hours @ 100 mW RF Output +14 Hours @ 10 mW RF Output
|
| USB Connectivity |
1 x USB Type-C (Data Transfer, Charging, USB Sound Card) |
| Display & Indicators |
1 x LED (Mute, Power) 1 x LED (Pair) 1 x OLED |
| Operating Temperature |
14 to 113°F / -10 to 45°C |
| Dimensions |
1.7 x 4.4 x 1.7" / 42.5 x 112.3 x 42.5 mm |
| Weight |
7.8 oz / 220g |
