This Deity Connect Wireless set has been discontinued by Deity. Deity no longer make the Wireless Connect set. This is the original version without on-board recording. It is a complete two-channel wireless kit using the 2.4GHz band. The box has been opened as it was sold and returned within 14 days. It works perfectly and is in 'as new' condition, with all the parts present.

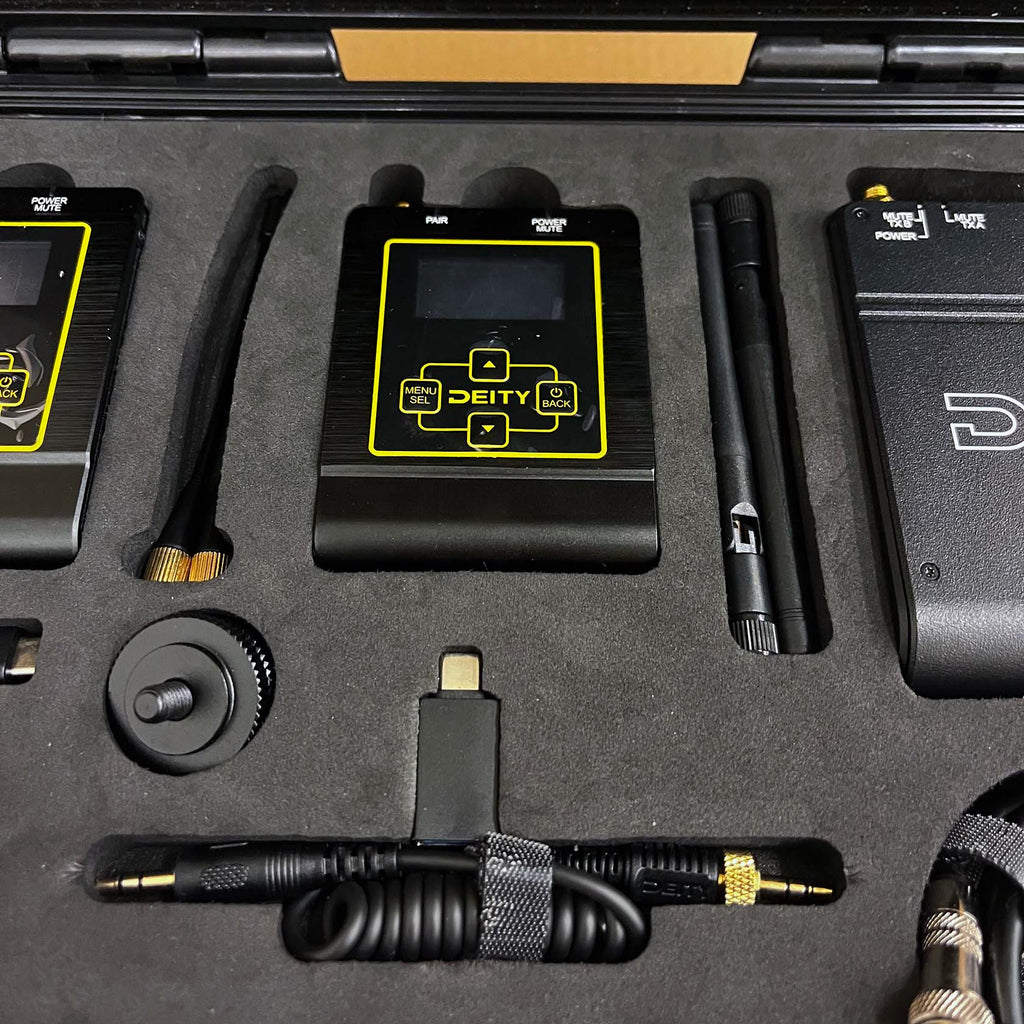

The Connect Deluxe Kit combines the DUO-RX dual-channel receiver, a pair of BP-TR transmitter/receivers, and two W.Lav Pros to offer a 2.4 GHz digital wireless system ready to deliver broadcast-quality sound for your next two-person interview or narrative shoot.
This is the first generation version which is now discontinued.
Features
- DUO-RX True-Diversity 2-Channel Receiver
- OLED Screens, Limiters, RF Adjustment
- Updatable Firmware
- 10-Hour Battery Recharges in 1 Hour

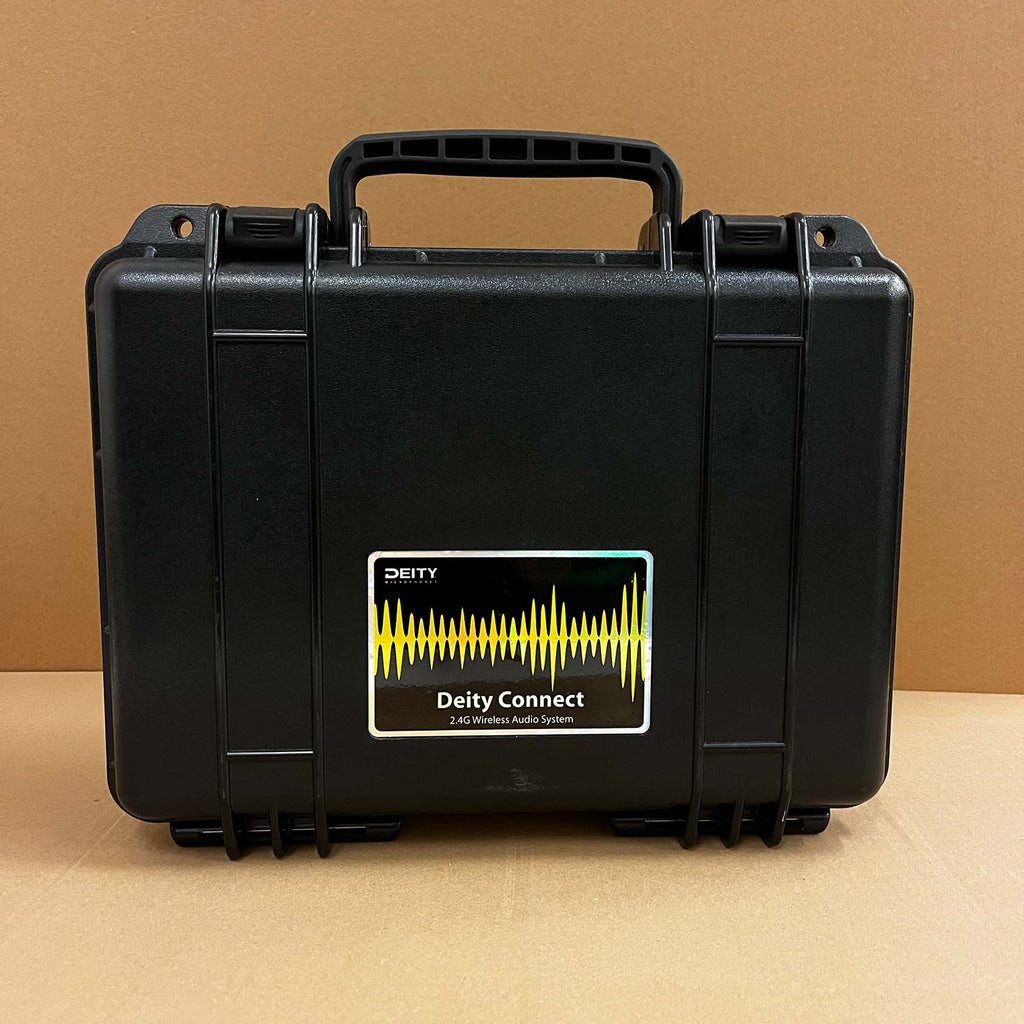

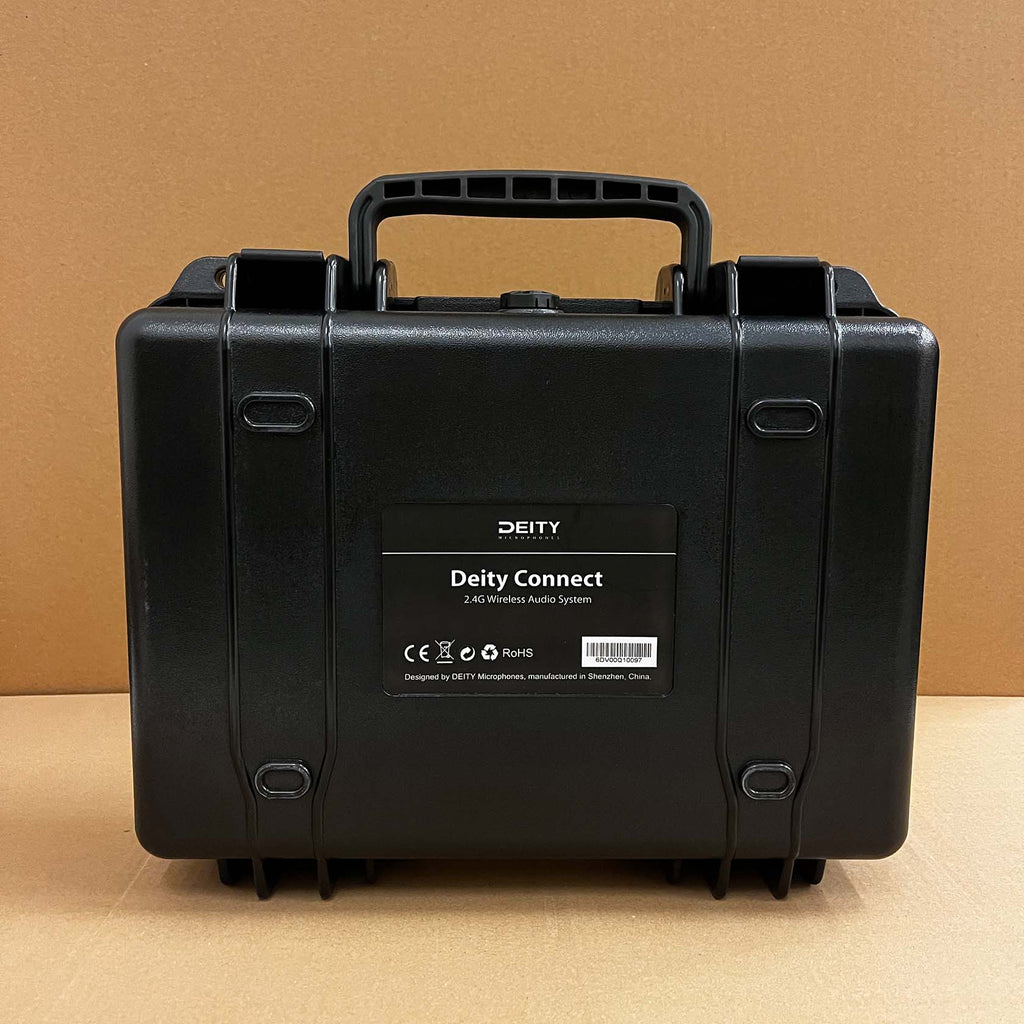

- Includes Accessories & Waterproof Case
Specifications
| Transmission Type |
2.4GHz |
| Modulation Type |
Proprietary Protocol |
| RF Protection |
Encoded RF Signal |
| Frequency Type |
Advanced Adaptive Frequency Hopping |
| RF Output Power |
10mw, 25mW, 50mW, 100mW, AUTO |
| Latency |
19ms |
| Range(distance) |
Up to 100m |
| Bitrate/Sampling Frequency |
24bit/48KHz |
| Frequency Response |
20 – 20KHz |
| Input Connection |
Locking 3.5mm TRS |
| Input Type |
Mono, Stereo |
| Input Level |
Mic, Line |
| Input Mic Power |
3.3V |
| Input Gain |
-12dB to +36dB |
| Limiter Type |
Guard Rail™️ Analog Limiter |
| Low Cut Filter |
Off, 20Hz to 200Hz |
| Output Connection |
Locking 3.5mm TRS |
| Output Type |
XLR, DSLR, TC Sync |
| Antenna Inputs |
Internal & External SMA |
| USB update |
exFat/Fat16/Fat32 |
| Battery Type |
Lithium-Ion Rechargeable Battery |
| Battery Capacity |
2800mAh |
| Battery Life |
25Hrs TC Box Mode
12Hrs@100mW RF Output
12Hrs RX Mode
|
| Battery Charger |
USB Type-C Charging Cable
|
| Display Type |
1.3″ OLED Display
|
| Dimensions |
83.75×63.5×18.5mm
|
| Weight |
160g
|
| Temperature Range |
-10℃ to +45℃
|
